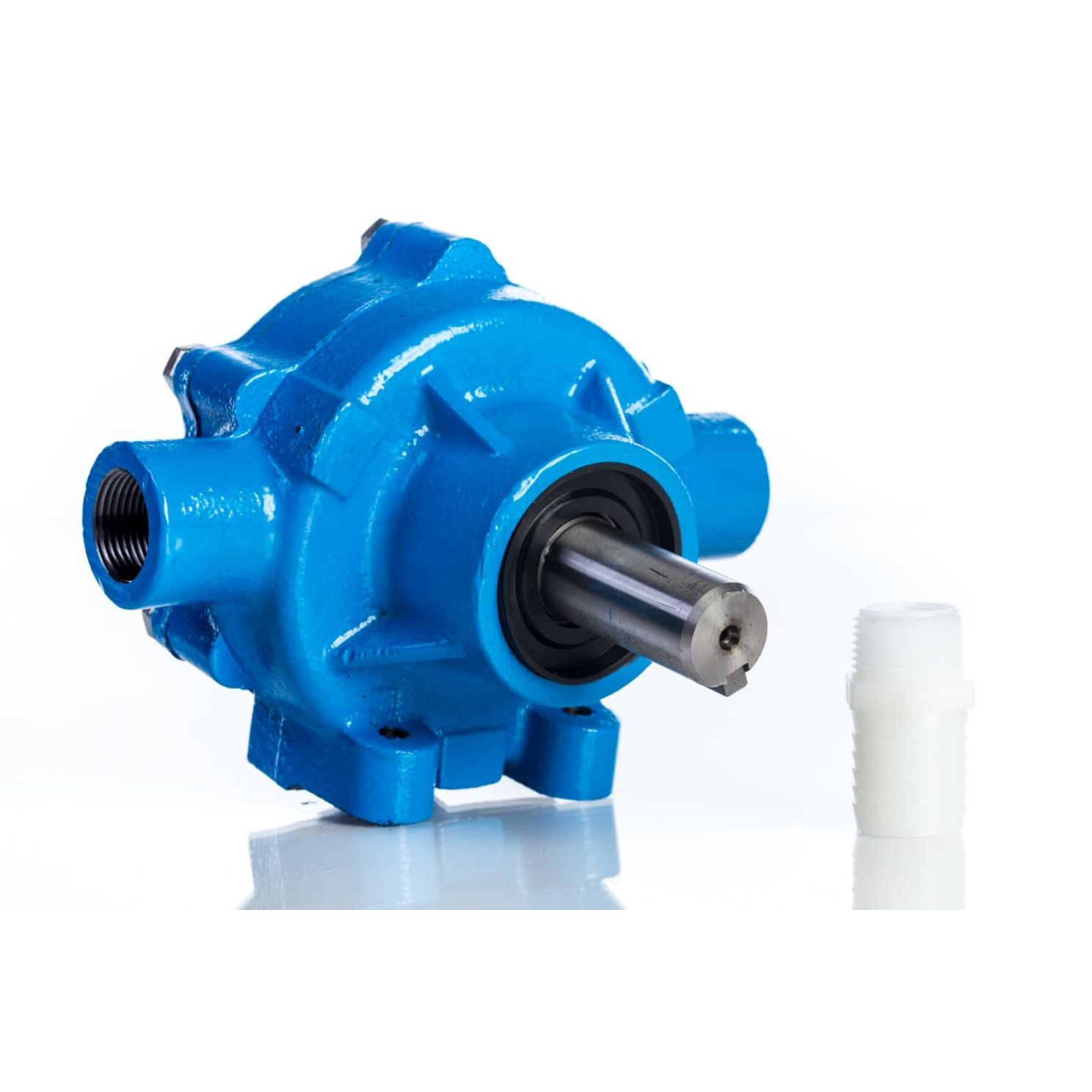

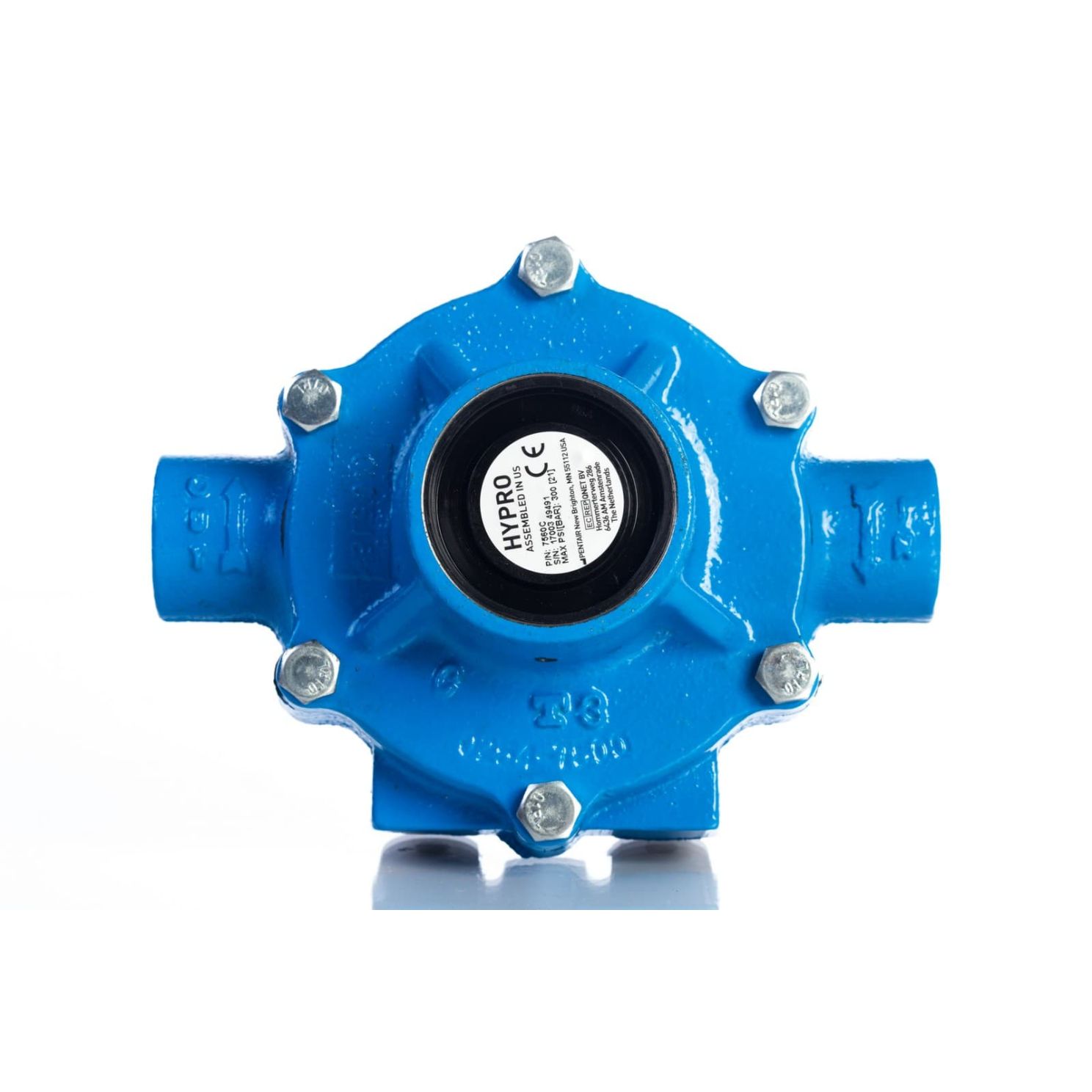

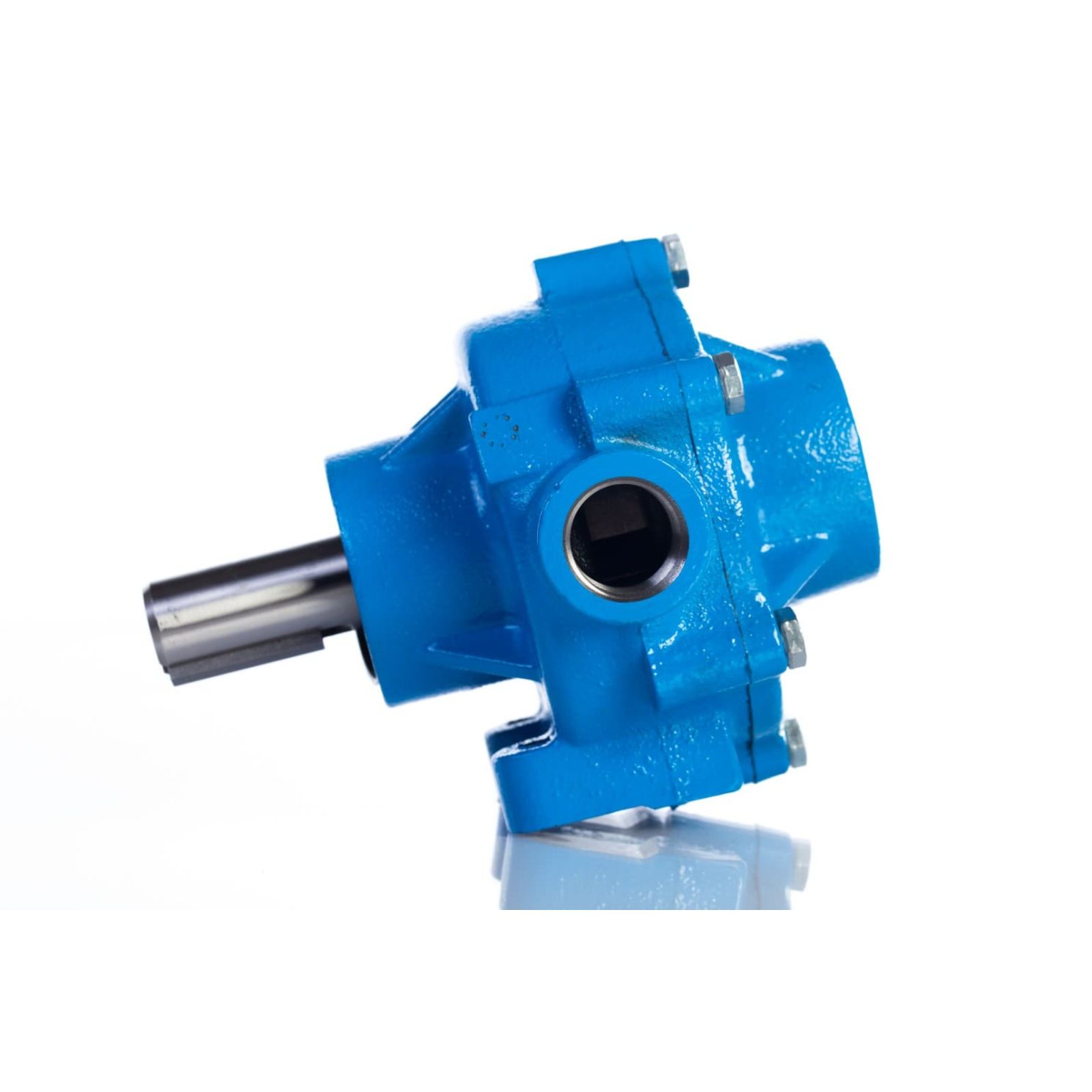

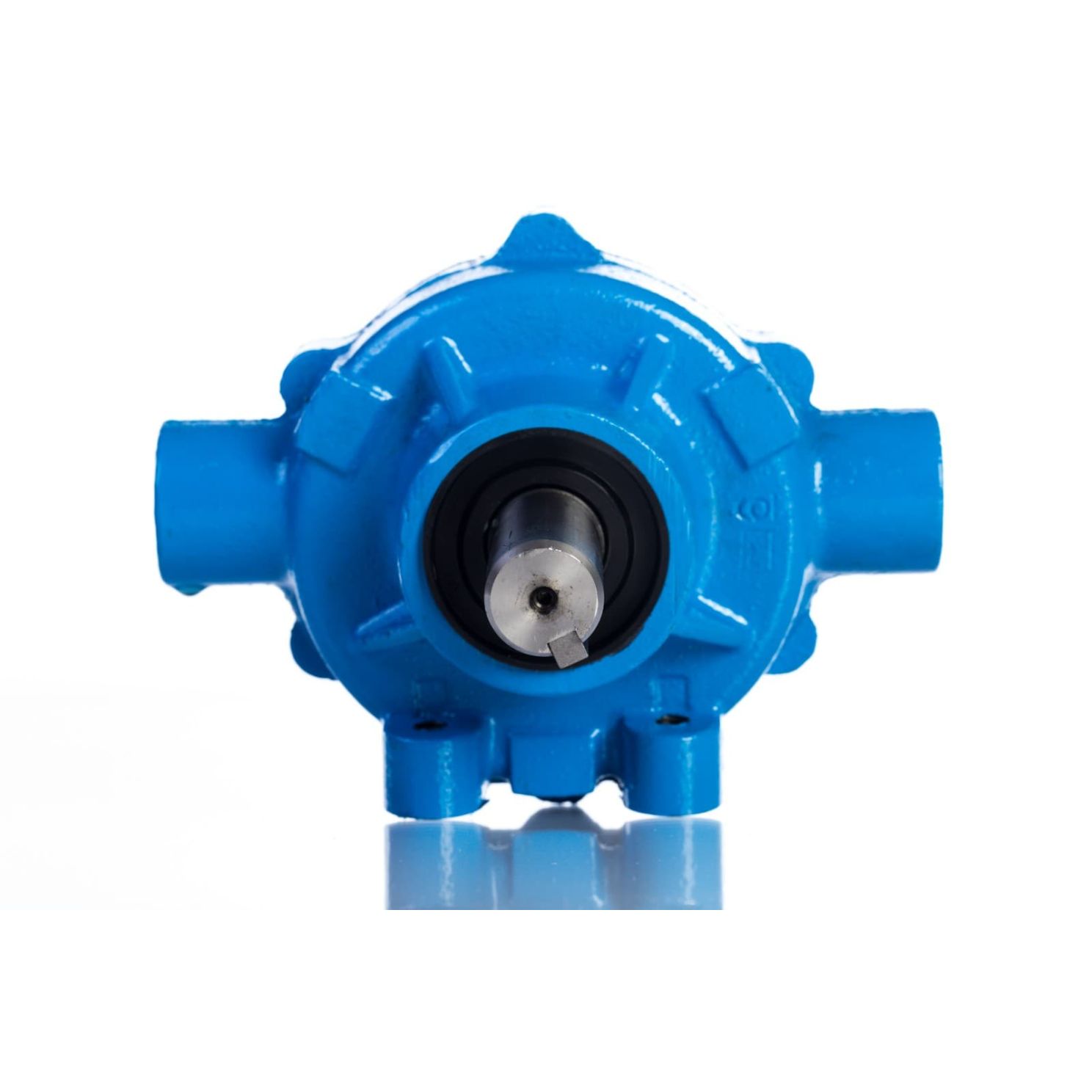

Hypro 7560C Cast Iron Sprayer 8 Roller Pump 22.5 GPM
Details
- Max. flow: 12 gpm/45.4 lpm at 540 rpm
- Max. flow: 22.5 gpm/85.2 lpm at 1000 rpm
- Max. pressure: continuous 100 psi/6.9 bar
- Max. pressure: intermittent 300 psi/20.7 bar
- Max. rated speed: 1000 rpm
- Max. fluid temperature: 140F/60C
- Rollers: Super Rollers standard (Poly, Teflon and Buna-N available)
- Housing: Cast Iron, Ni-Resist or Silvercast
- Port sizes: 3⁄4'' NPT
- Shaft: 15⁄16'' solid
- Shaft rotation: CCW (CW available)*
- 1'' hose barb inlet fitting for 1000 rpm operation
- Shaft Seals: Viton standard (Buna-N available)
- Available PTO adapters
- Rotor: Super Rotor Standard. (Cast Iron, Ni-Resist and Silvercast available. Add ''-A'' when ordering.)
- Recommended PTO torque arm kit 3430-0540
- Weight: 13 lbs./5.89 kg
