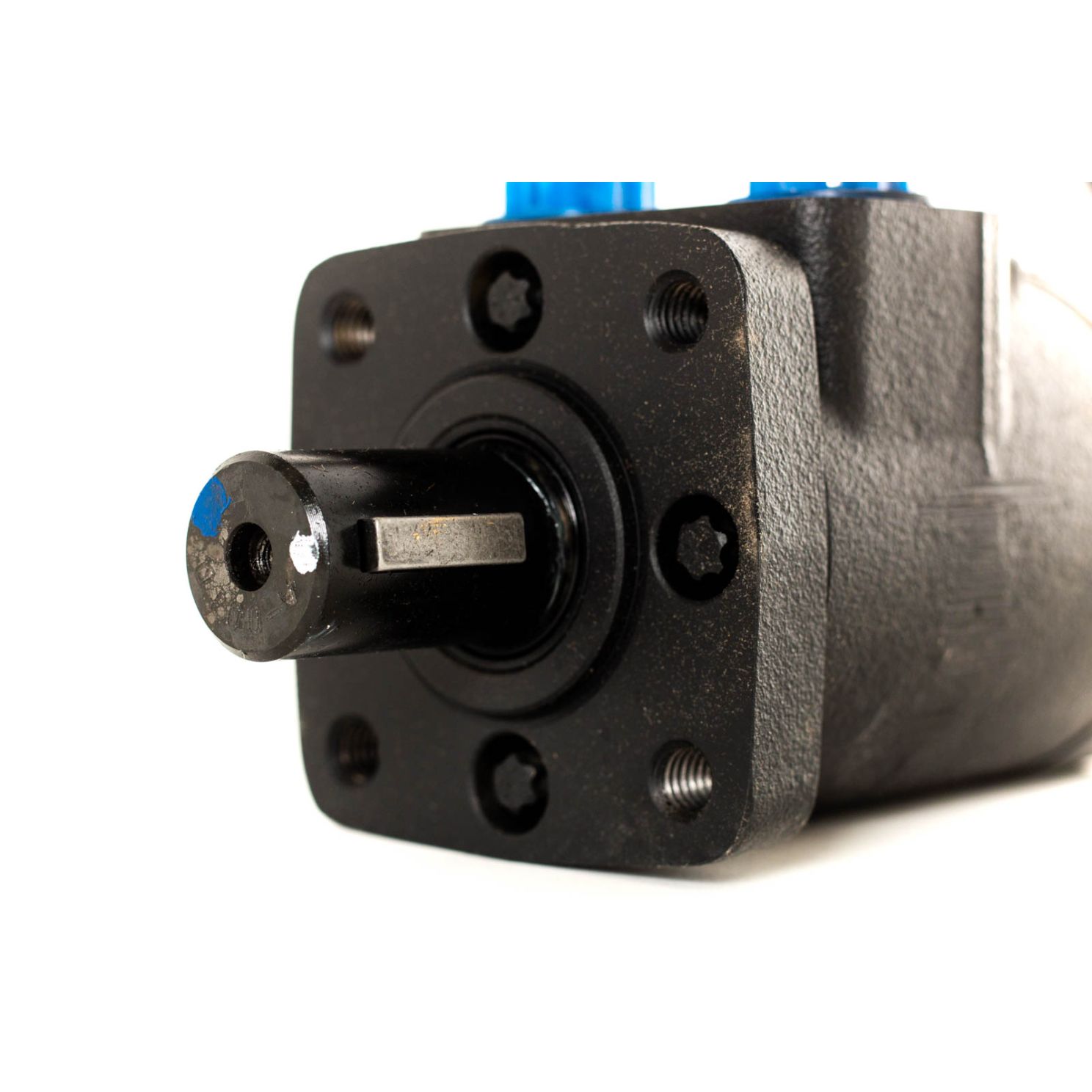

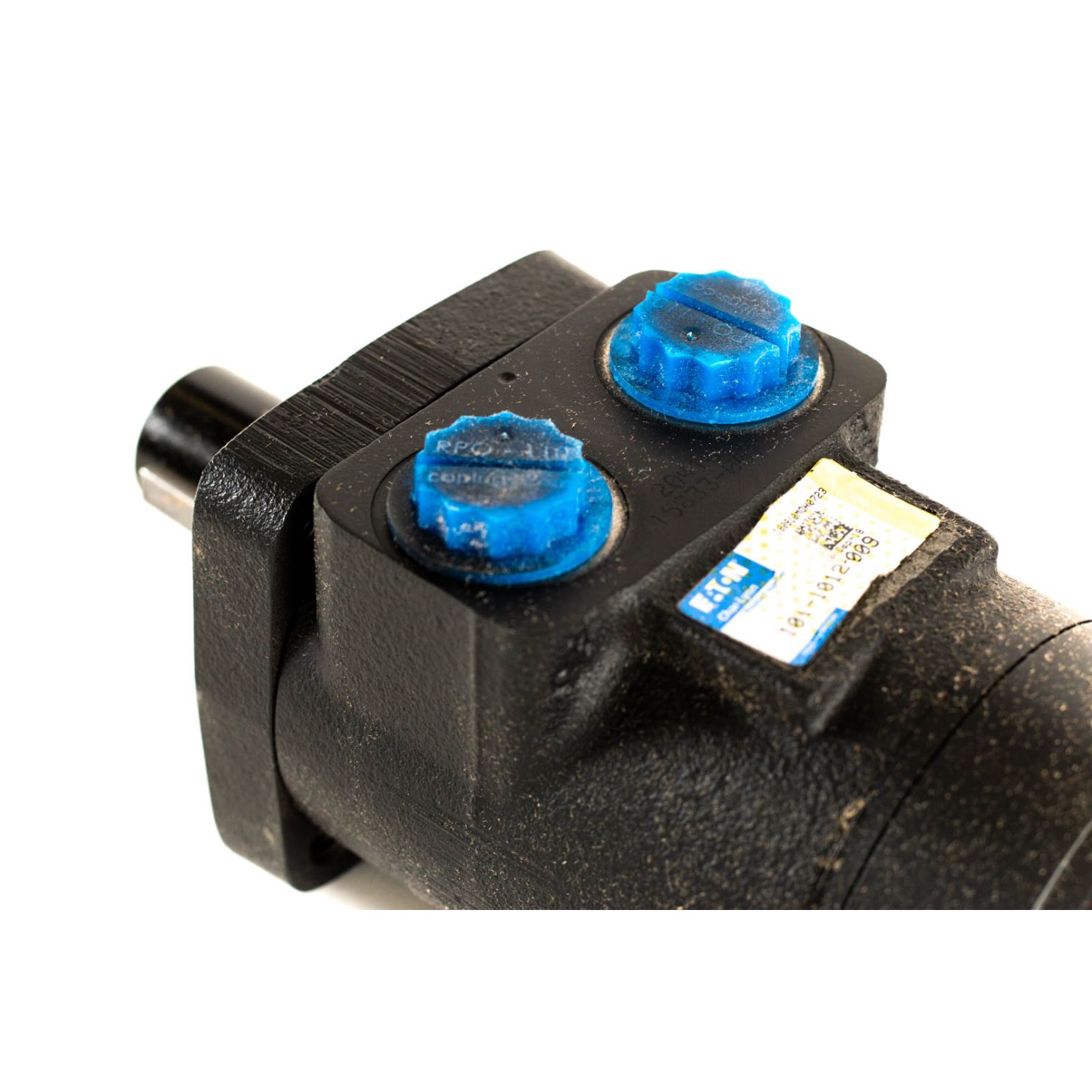

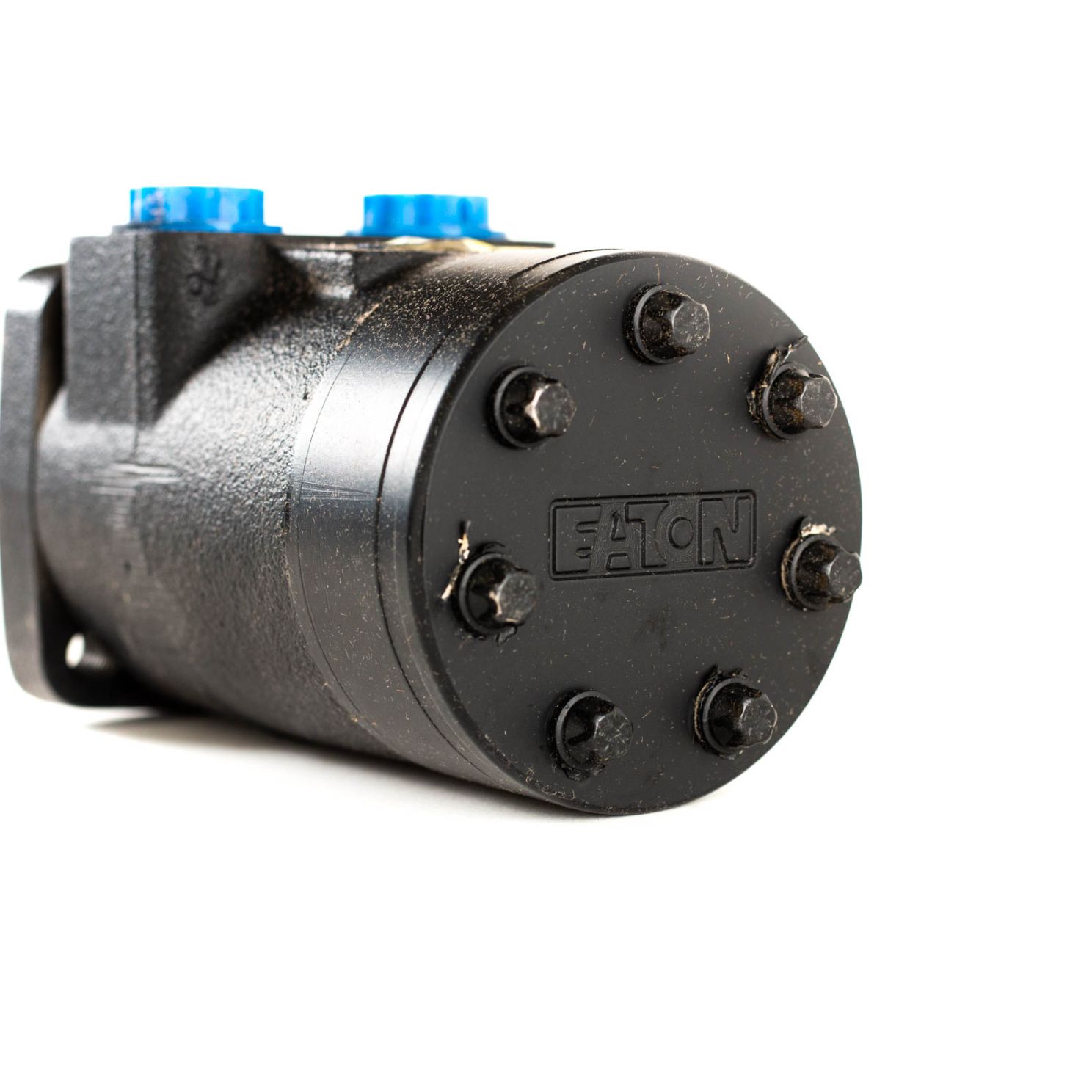

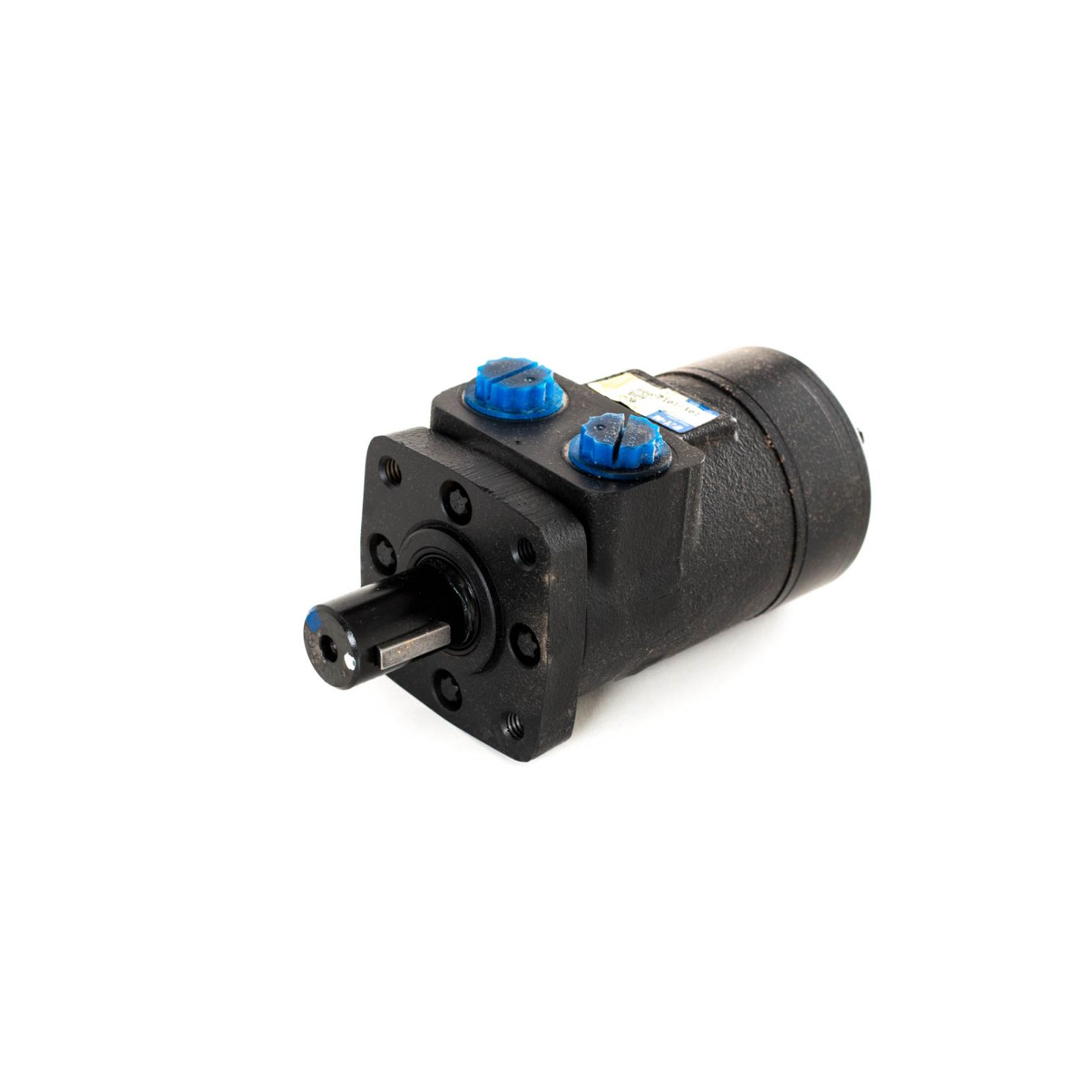

Eaton 101-1004-009 Gerotor Hydraulic Motor
Details
- Eaton CharLynn Hydraulic Motor: 101-1004-009
- Replacement Hydraulic Motor for Roll a Cone down corn system
- Type: LSHT Gerotor
- Series: H Series
- Displacement: 9.7 cu-Inch-rev
- Continuous Pressure: 1650 psi
- Speed: 353 Rpm
- Continuous Torque: 2059 Inch-lb
- Intermittent Torque: 2824 inch-lb
- Flow Rate: 15 gpm
- Port Type: Side
- Inlet/Outlet Port Size: 1/2-14 NPTF 8MP
- Mounting Type: 4-Bolt, 1-3-4 Inch Pilot
- Oil Viscosity: 100 - 200 SUS
- Oil Temperature: 180 deg F
- Shaft Size: 1 Inch Dia, keyed
