CCS-JD-DKIT Copperhead Concave Disruptor Kit fits John Deere
Details
- Disrupt flow of material
- Eliminates rotor loss
- Increases capacity
- All crops
- Easy customization

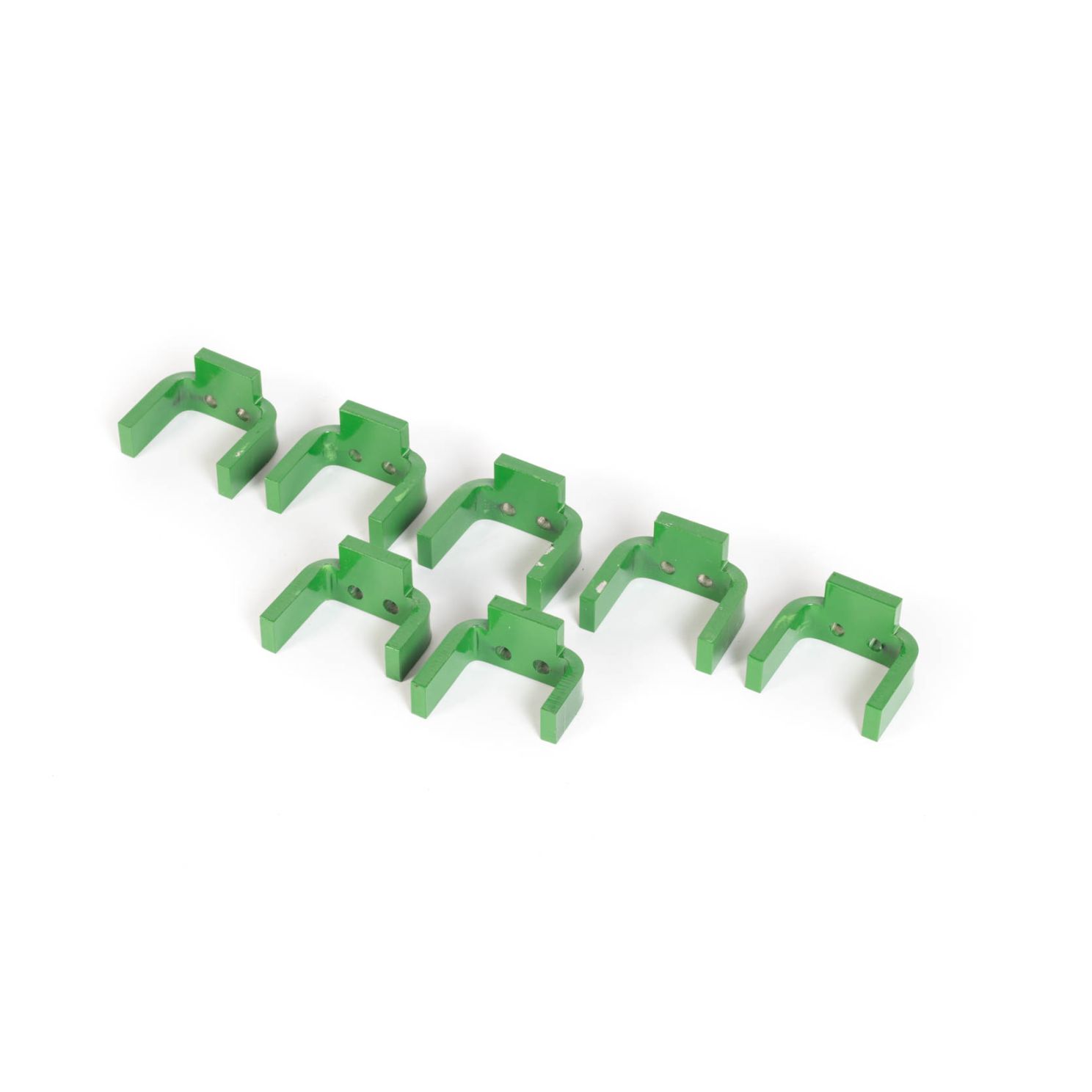

- Usually, when a combine is experiencing rotor loss it is due to an overloaded separation section. Too much material trying to be separated at once causes grain to be pushed out the back of the machine with the chaff. By utilizing a set of disruptor lugs in the separation grate section of your machine, you can interrupt the flow of stems and leaves as they pass through the machine. This helps the machine to stir that chaff, which allows caught-up grain to be dropped through the sieves, instead of carried out the back. Disruptors are "U" shaped lugs that bolt up into a separation grate from the bottom. Each lug will have the two top ends of the "U" sticking up like fingers. The fingers are made so that they can be modified to ensure clearance of the spikes on the rotor. They are made from mild steel so they will break or bend while in service, rather than breaking a separation grate or a part on your rotor. We also send spacer bars that install between the grates and the frame to drop down your separation grates and create more space for separation. Rather than dropping one side, like the stock separators do, we install them on both sides of the machine to create a level area with more room for your machine to work.
- The disruptor kit will work with any concave system, as long as the grates are stock and it will help separate in any crop.

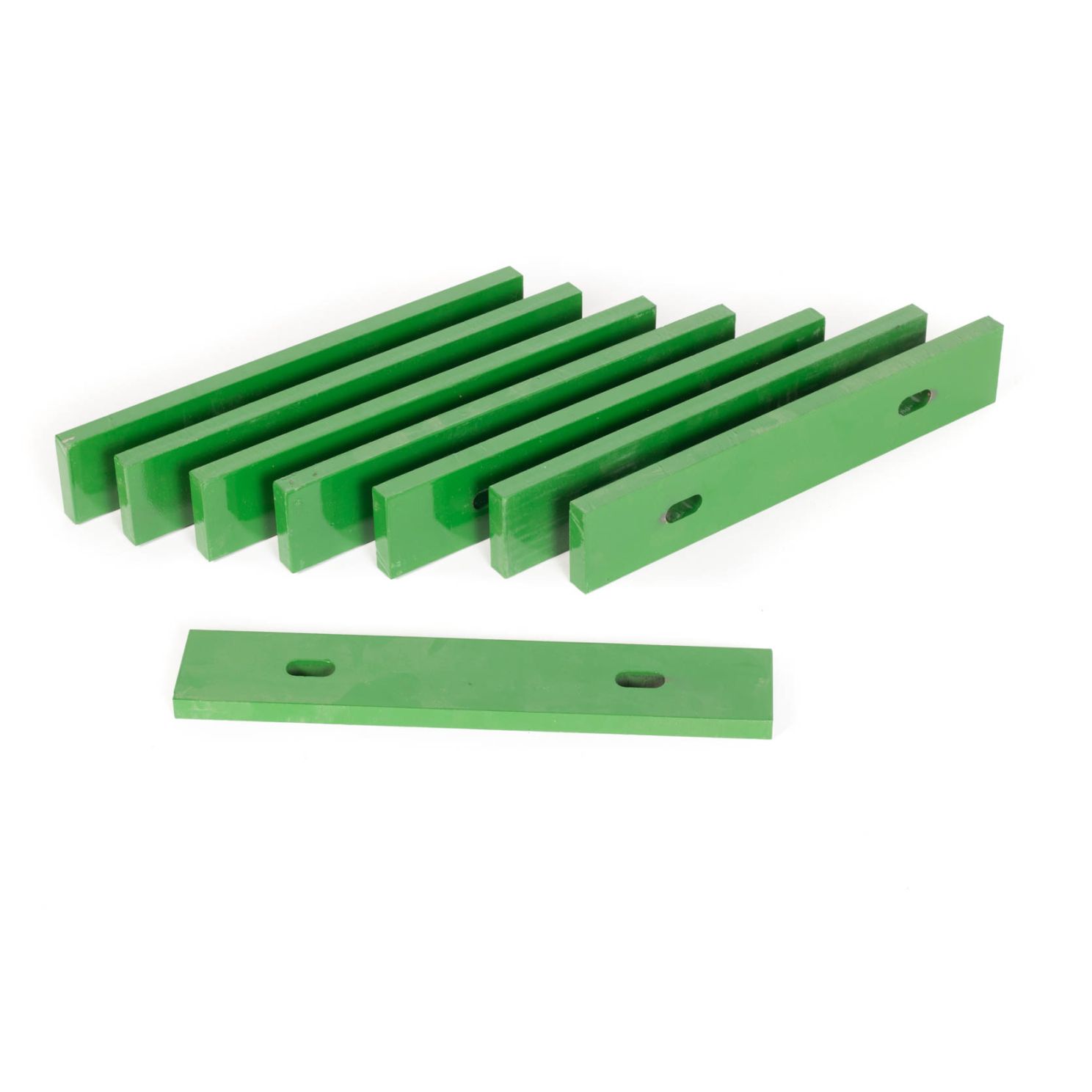

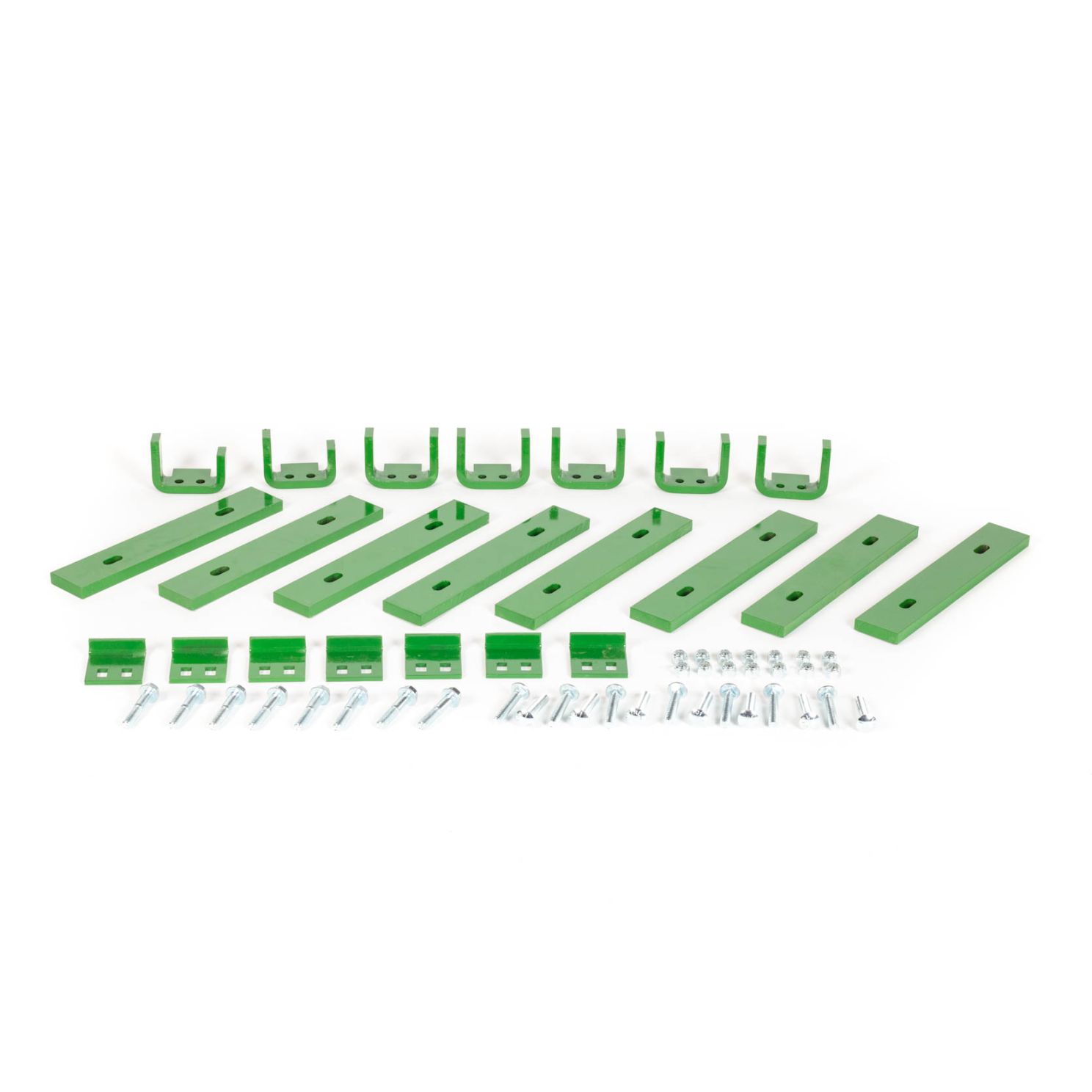

- Kit comes with 7 total disruptor lugs and 8 spacer bars. Two of the disruptor lugs have shortened teeth on one side to assist with clearance of the rotor spikes.
- Installation manual has tips on where these will likely be used.
- If you bale your wheat straw, it is recommended that you install only the front 3 lugs as the full kit will size the straw too finely for baling.
