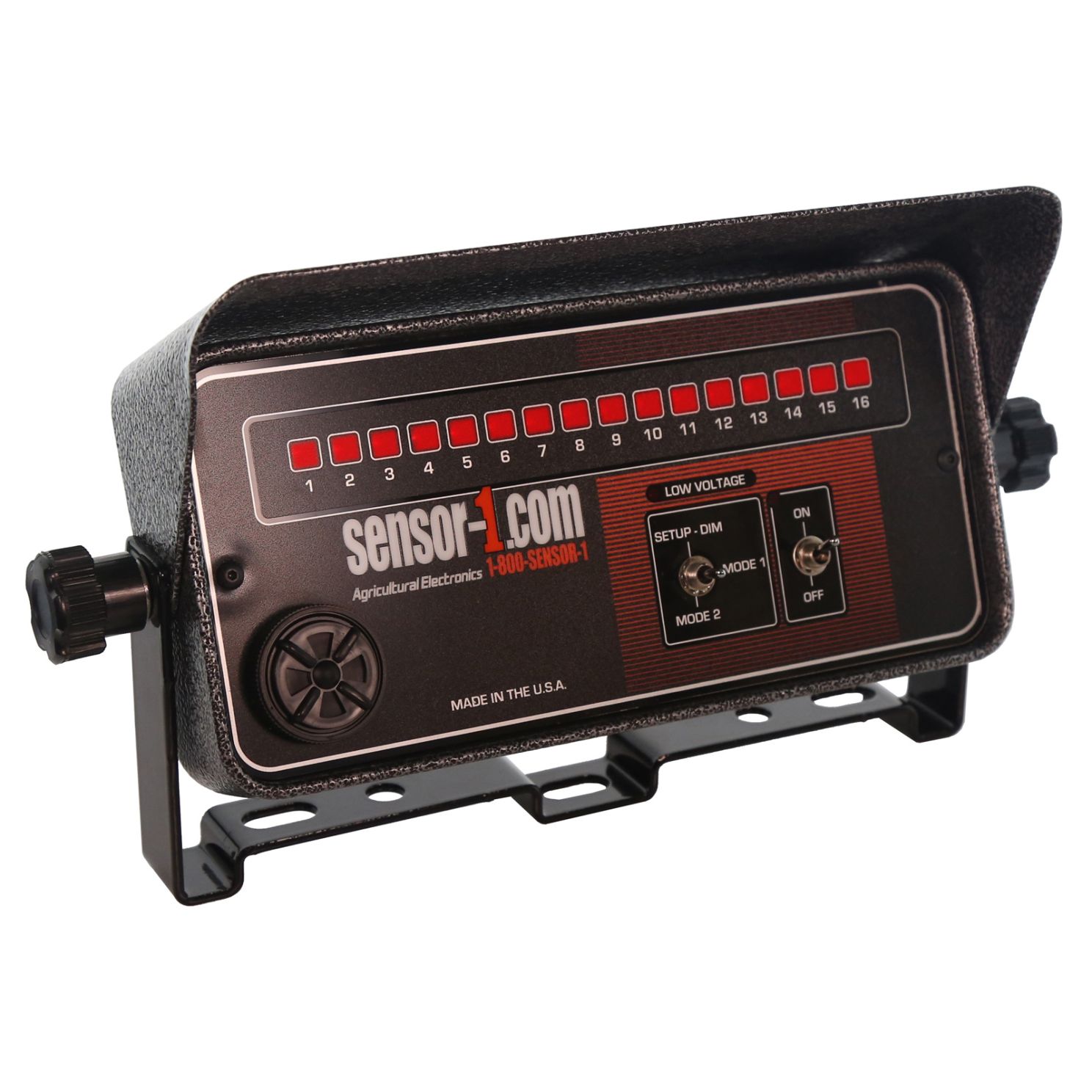

Sensor-1 Seed Flow Planter/Drill Monitor 16 Row
Part #
111524
$869.79
Details
- Row Indicator Lights
- Mode 1: The light will flash each time a seed is dropped. When an alarm condition occurs, when a row fails, if there are no seeds going down the tube or seed blockage, the indicator will stop flashing and the alarm will sound.
- Mode 2: The lights will be off when the rows are planting in a normal condition. The indicator lights will come on and stay on if there is an alarm condition. If all rows are not planting, an alarm will sound for a few seconds and the light indicator will remain on until normal planting occurs. If one or more rows are not planting, the alarm will sound until the problem is fixed.
- Row Failure
- The monitor continuously checks for seed flow while planting, as indicated by the flashing row indicator lights on the console. If any planter unit sensor is not detecting seeds, the alarm will sound continuously and the row indicator light corresponding to the planter row unit will stop flashing, when this happens, stop planting and check to see what is wrong with the planter unit. If you cannot solve the problem and you don’t have a spare sensor, turn the monitor off and on and then push the setup switch while planting and the failed row will not trigger an alarm. The corresponding row light will stay off until you reset the monitor.
- Set up switch to set a base point to measure average seed flow. If the seed count drops below 50% of set-up point, the alarm will sound to indicate reduced seed flow and the LED lights will flash to indicate row failing.
- Supplied with 10' Harness 37 pin AMP connector to connect from monitor to rear of cab
- 1 Year Warranty
