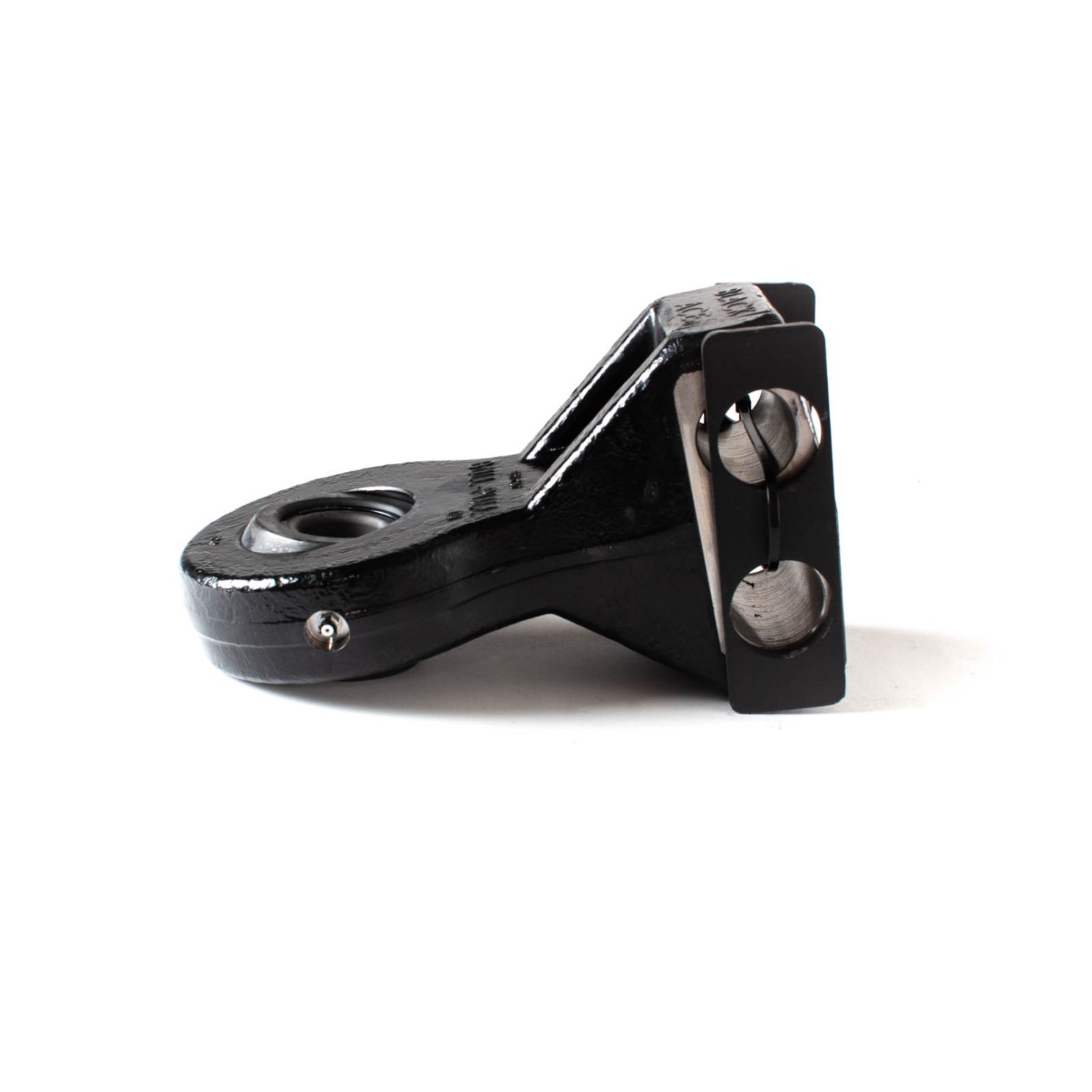

Bull Pull BPF-CAT 4ZCH Articulating Hitch Cat 3 & 4 Standard
Details
- Replaces Case IH part number 84399324
- Category 3 & 4
- Number of bolt holes: 2
- A: Draw Pin Size: 1-1/2", 2"
- B: Ball Housing Diameter: 6-3/8"
- C: Receiver Width: 4-3/4" (4" without spacers)
- D: Draw Pin to hole mounting: 7-1/2"
- E: Overall length: 11-3/8"
- F: Height for drawbar strap: 2-3/4"
- G: Bolt hole size: 1-5/8"
- H: Bolt hole distance: 3"
- J: Receiver Height: 6-3/4"
- K: Hole center to back receiver: 1-1/4"
- L: Housing thickness: 2"
- Eliminates implement “slam”, reducing shock loads on tractor and implement
More Information OEM | 84399324 |
---|
Fitments
- Case IH - Anhydrous Applicator Parts: Nutri-Placer 930
- Case IH - Cultivator Parts: TM255
- Case IH - Disc Ripper Parts: 875
