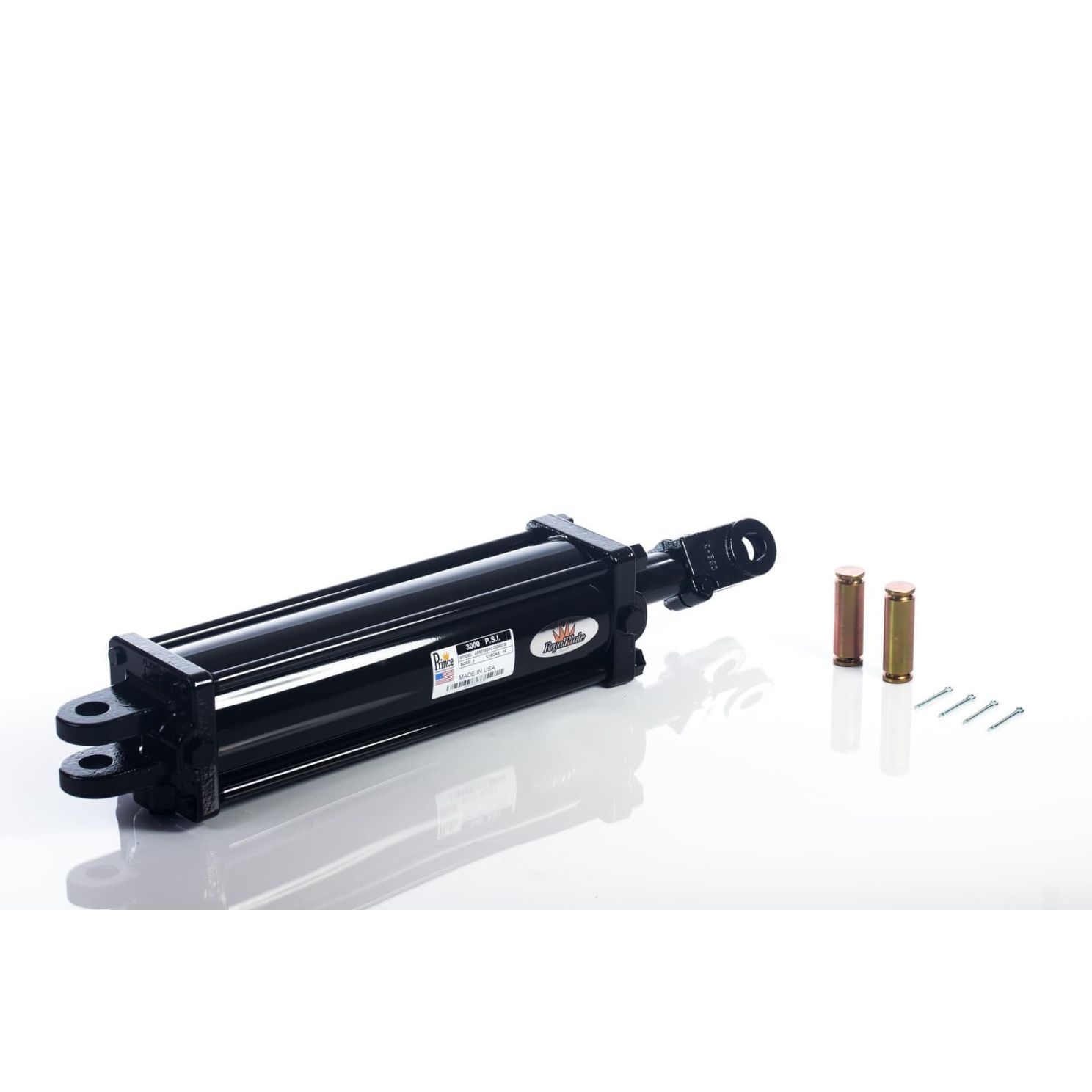

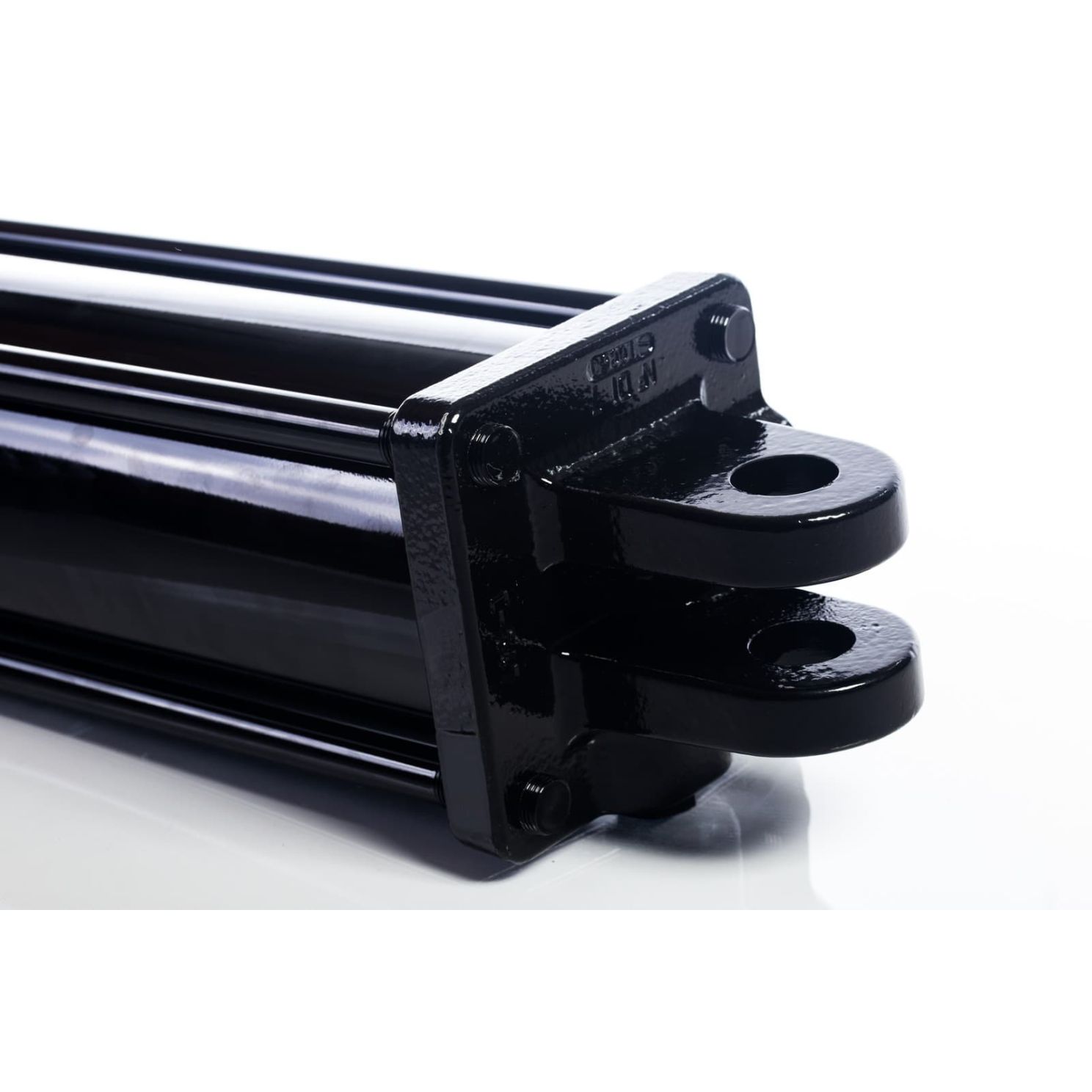

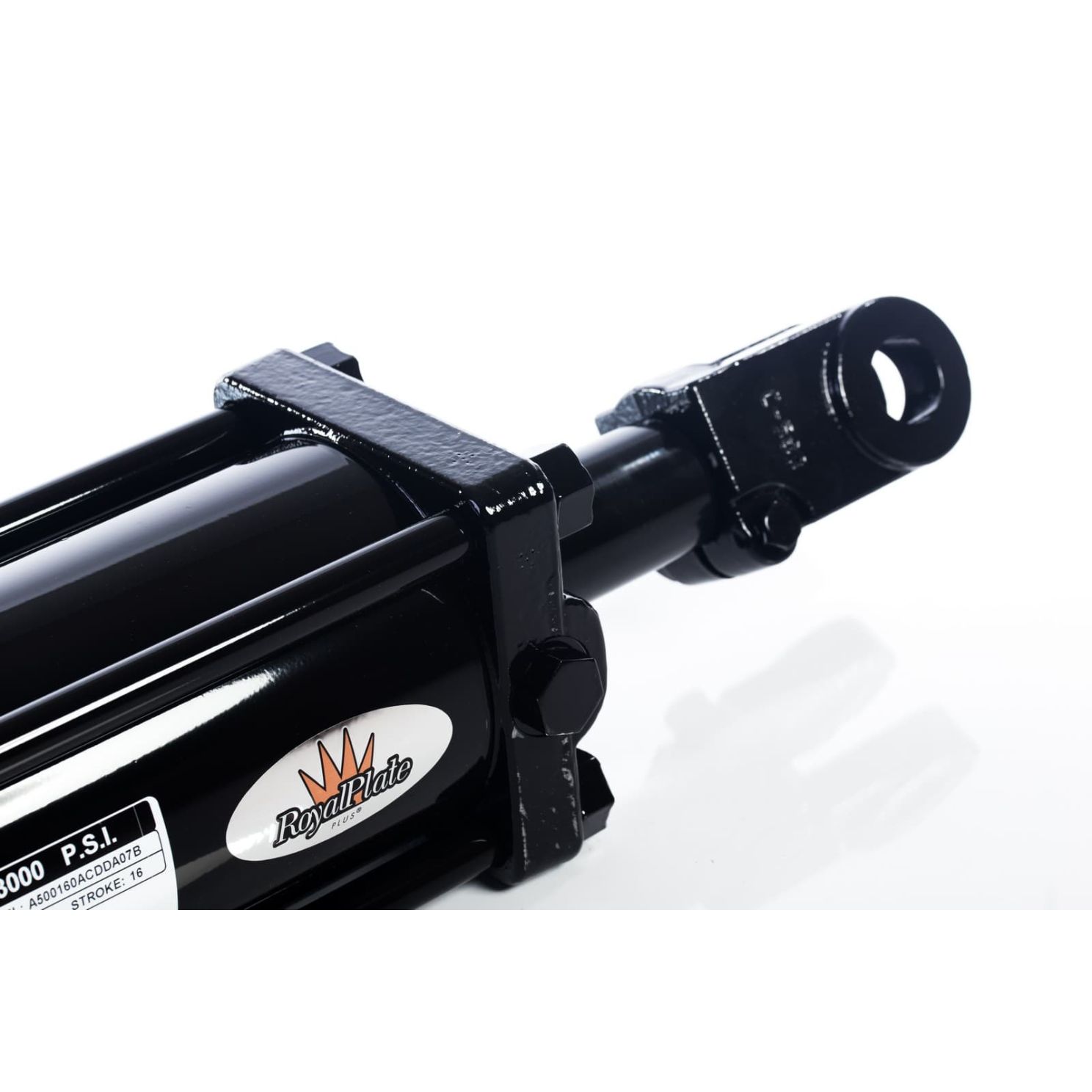

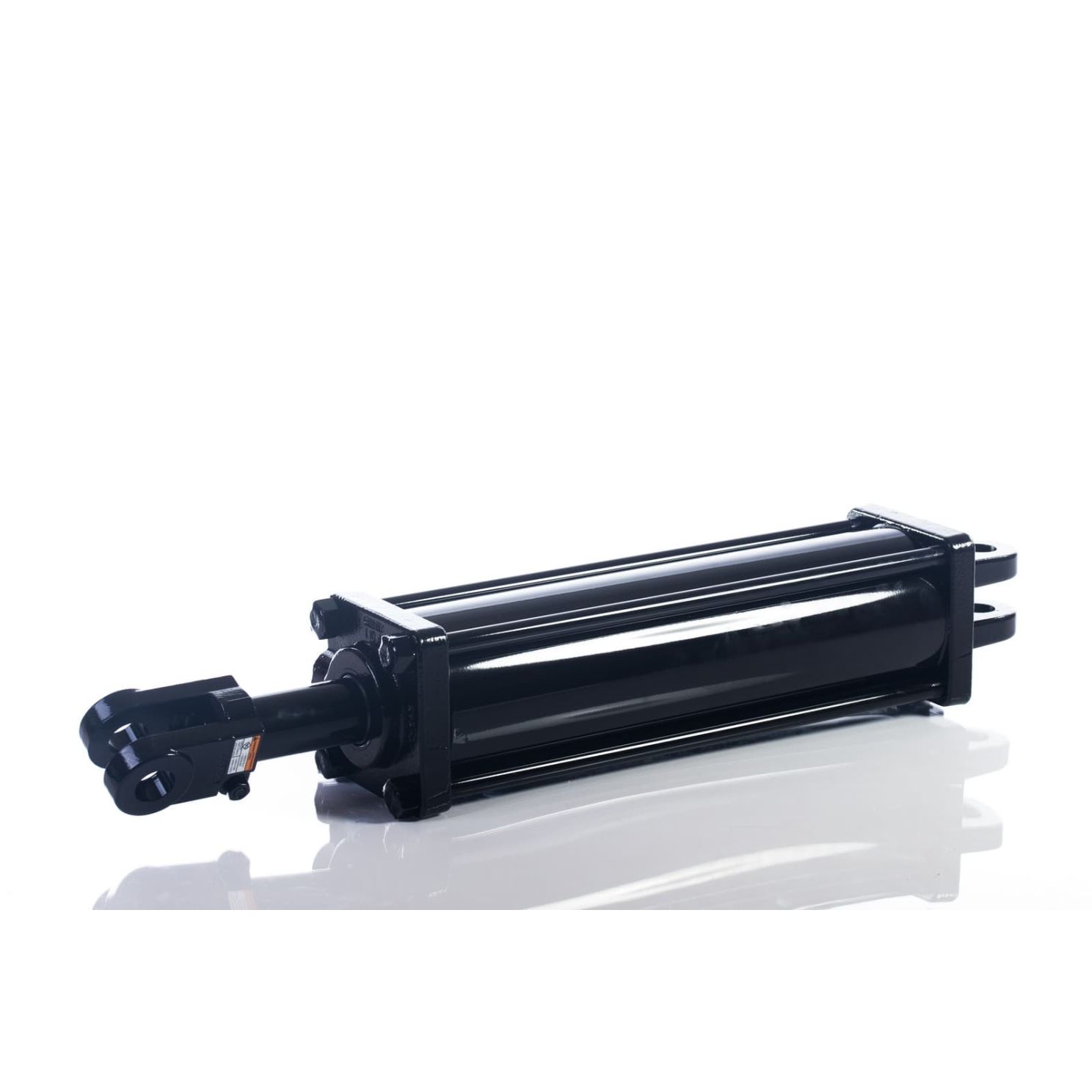

Prince 5'' X 16'' Hydraulic Tie Rod Cylinder 3000 Psi
Part #
320015
$789.99
Details
* 2'' rod diameter A 1/4'' cylinder tube wall thickness B, C SAE 7/8 -14 extend & retract ports D 1.265'' clevis pin hole size E, F 1 3/4'' base clevis throat depth with 25/8'' from pin center to port center G 2'' rod clevis throat depth J 1.13'' min. distance between ears at pin center line K 1 3/8'' base clevis ear radius L 1 1/4'' rod clevis ear radius M 1 1/2'' -- 12 UNF-3 piston rod clevis thread size N 1 7/16'' piston width O 2 1/2'' gland width
