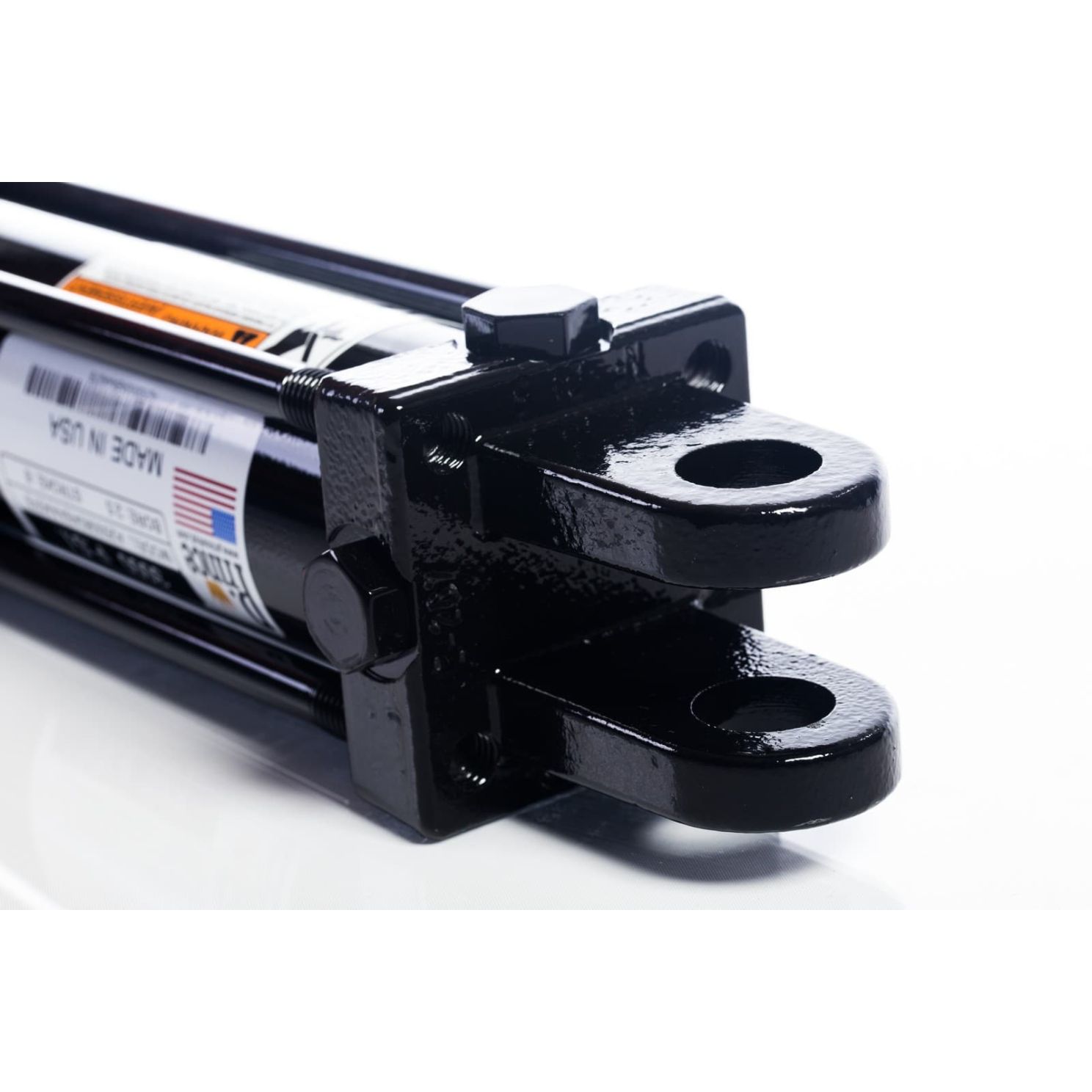

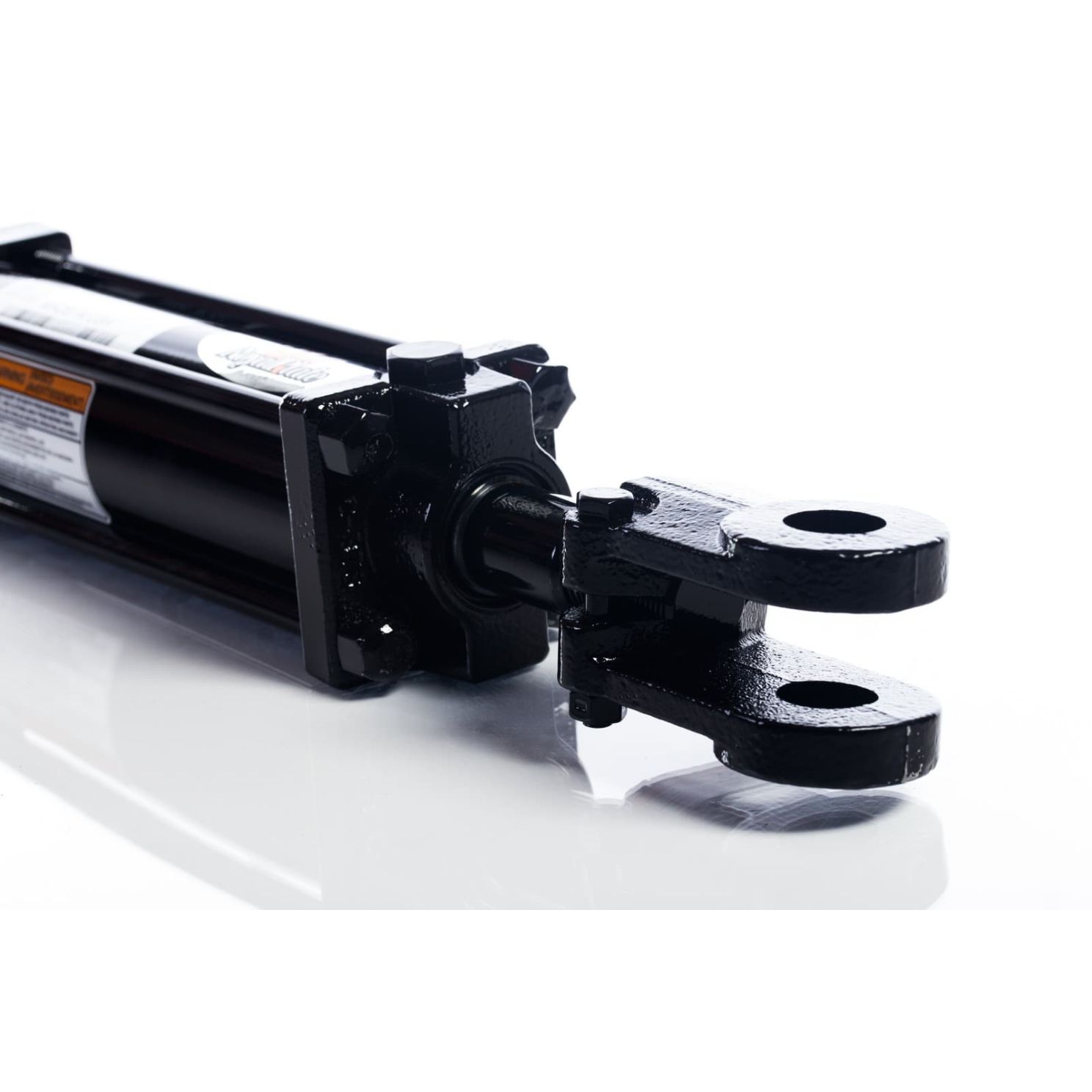

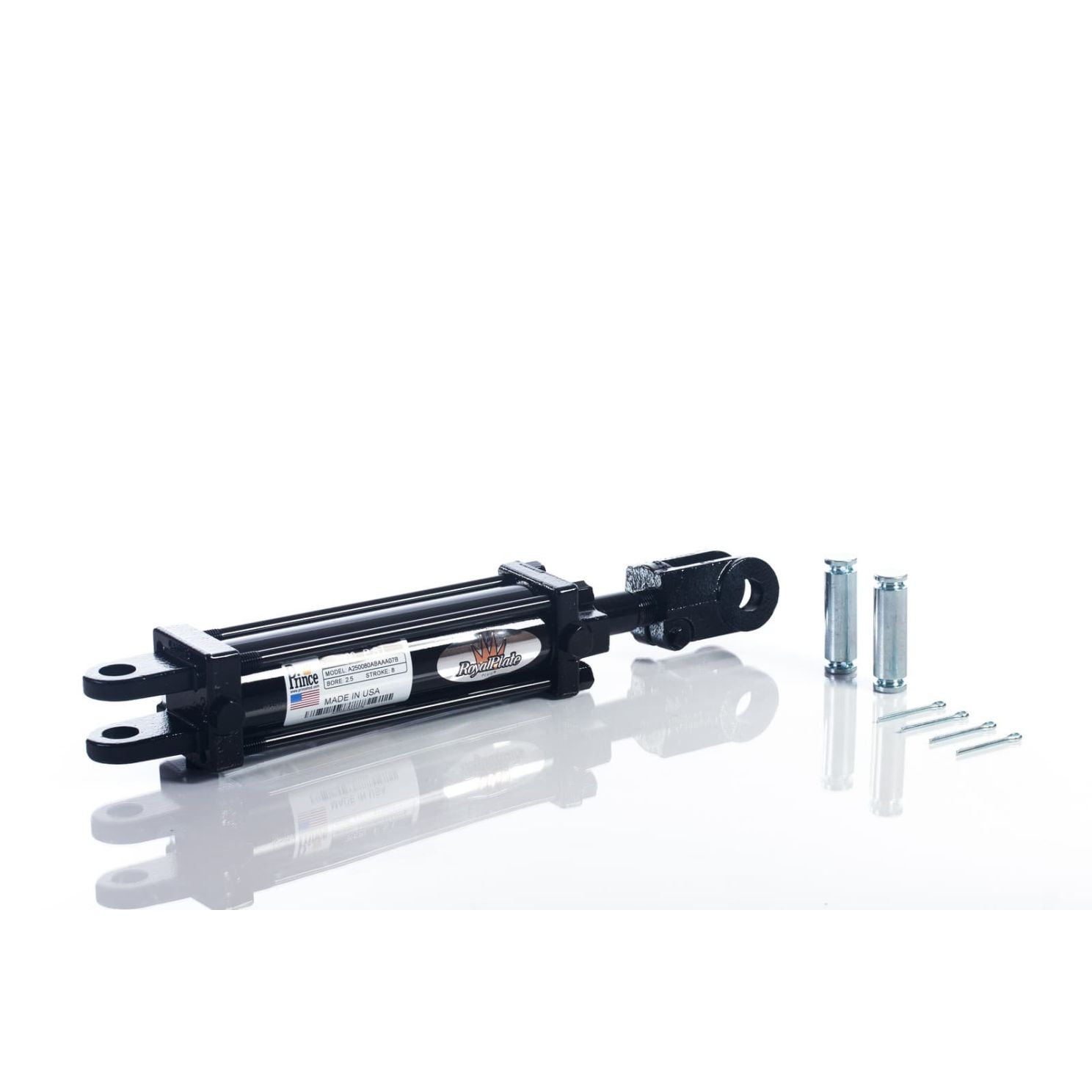

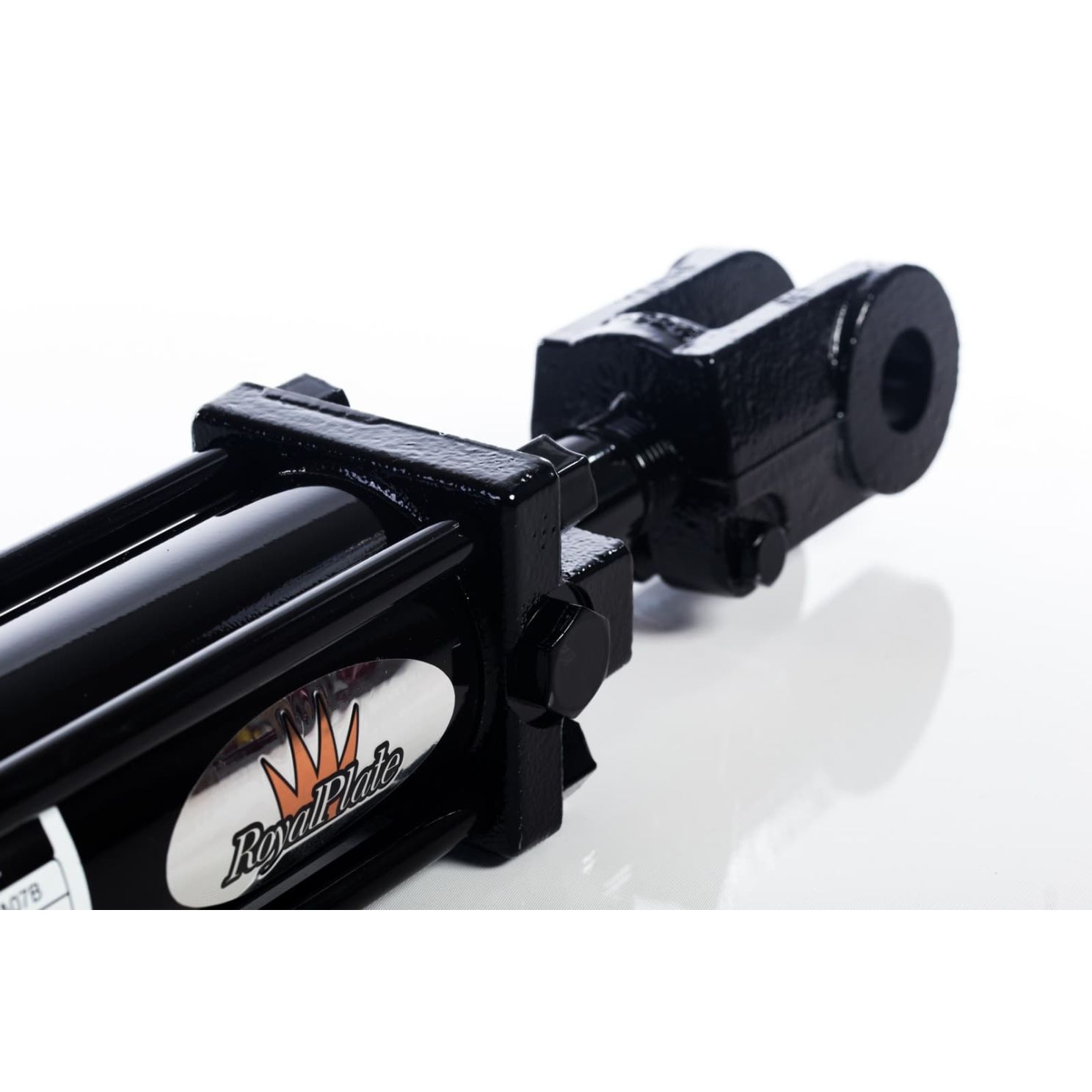

Prince 2-1/2'' X 8'' Hydraulic Tie Rod Cylinder 3000 Psi
Part #
320002
$329.99
Details
* 1 1/4'' rod diameter A 3/16'' cylinder tube wall thickness B, C SAE 3/4-16 extend & retract ports D 1.015'' clevis pin hole size E, F 1 7/8'' base clevis throat depth with 213/16'' from pin center to port center G 1 13/16'' rod clevis throat depth J 1.06'' min. distance between ears at pin center line K 15/16'' base clevis ear radius L 1 1/8'' rod clevis ear radius M 1 1/8'' -- 12 UNF-3 piston rod clevis thread size N 1'' piston width O 2 3/8'' gland width
