John Deere STS (9560 9650 9660 9750 9760 9860 9570 9670 9770 9870) Combine Belts

John Deere STS (9560 9650 9660 9750 9760 9860 9570 9670 9770 9870) Combine Belts
1
1
1
2
3
4
5
5
6
7
7
7
8
8
8
8
8
9
9
9
9
9
10
10
10
10
10
10
11
11
11
12
13
2
2
2
14
14
14
14
14
15
16
16
16
16
16
17
17
17
18

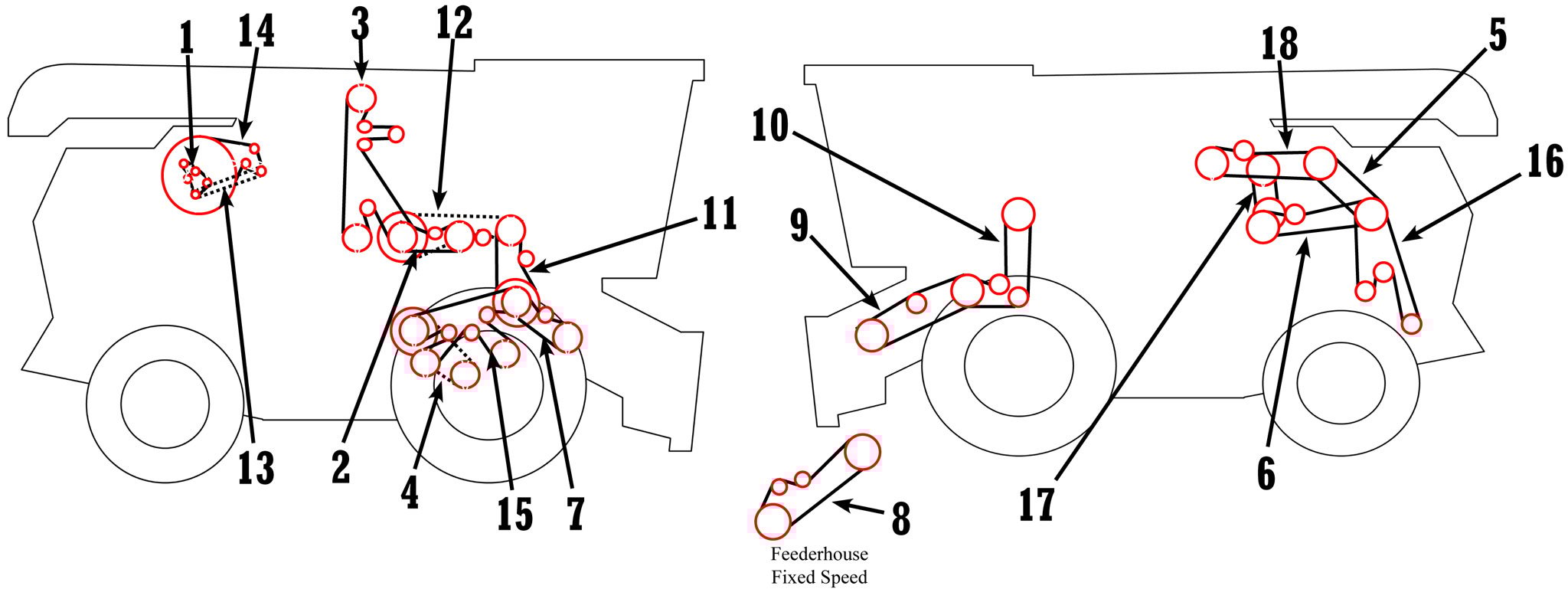

Click on numbers or letters on images to see associated product or subdiagram.
  1. 1
    R135606 Combine Alternator Drive Belt fits John Deere
    Fits: 9650 STS, 9760 STS
    $42.29
  2. 1
    R135609 Combine Alternator Drive Belt fits John Deere
    Fits: 9560 STS, 9650 STS, 9660 STS, 9760 STS
    $55.59
  3. 1
    R503505 Combine Alternator Drive Belt fits John Deere
    Fits: 9860 STS, 9870 STS
    $47.89
  4. 2
    H154731 Combine Tailings Auger & Elevator Drive Belt fits John Deere
    Fits: 9560 STS, 9570 STS, 9650 STS, 9660 STS, 9670 STS, 9760 STS, 9770 STS, 9860 STS, 9870 STS
    $33.19
  5. 2
    H201498 Combine Rotary Screen Drive Belt fits John Deere
    Fits: 9560 STS
    $15.49
  6. 2
    H206807 Combine Rotary Screen Drive Belt fits John Deere
    Fits: 9650 STS (SN 695601>), 9660 STS (SN <715401), 9760 STS (SN <715501), 9860 STS (SN <715601)
    $15.79
  7. 2
    H213353 Combine Rotary Screen Drive Belt fits John Deere
    Fits: 9570 STS, 9660 STS (SN 715401>), 9670 STS, 9760 STS (SN 715501>), 9770 STS, 9860 STS (SN 715601>), 9870 STS
    $22.09
  8. 3
    H218645 Combine Clean Grain Elevator Drive Belt fits John Deere
    Fits: 9560 STS, 9570 STS, 9650 STS, 9660 STS, 9670 STS, 9760 STS, 9770 STS, 9860 STS
    $115.79
  9. 4
    H206048 Combine Cleaning Fan Drive Belt fits John Deere
    Fits: 9560 STS, 9660 STS, 9670 STS, 9760 STS, 9770 STS, 9860 STS
    $61.99
  10. 5
    HXE15671 Combine Discharge Beater & Chopper Countershaft Belt fits John Deere
    Fits: 9560 STS, 9570 STS, 9650 STS, 9660 STS, 9670 STS, 9760 STS, 9770 STS, 9860 STS, 9870 STS
    $97.09
  11. 5
    H201596 Combine Beater & Chopper Countershaft Belt fits John Deere
    Fits: 9860 STS (HEAVY DUTY)
    $152.49
  12. 6
    H219182 Combine Discharge Beater Drive Belt fits John Deere
    Fits: 9560 STS, 9570 STS, 9650 STS, 9660 STS, 9670 STS, 9760 STS, 9770 STS, 9860 STS, 9870 STS
    $66.49
  13. 7
    H221731 Combine Feed Accelerator Drive Belt fits John Deere
    Fits: 9560 STS (SN <715301), 9650 STS, 9660 STS (SN <715401), 9760 STS (SN <715501), 9860 STS (SN <715601)
    $116.09
  14. 7
    H221733 Combine Feed Accelerator Drive Belt fits John Deere
    Fits: 9650 STS, 9660 STS, 9670 STS, 9760 STS, 9770 STS, 9860 STS, 9870 STS (SN <730101)
    $136.29
  15. 7
    HXE54503 Combine Feed Accelerator Drive Belt fits John Deere
    Fits: 9870 STS (SN 730101>)
    $148.09
  16. 8
    H151952 Combine Header and Reel Pump Drive Belt fits John Deere
    Fits:
    $109.99
  17. 8
    H126345 Combine Header & Reel Pump Drive Belt fits John Deere
    Fits: 9560 STS, 9570 STS (SN <740200), 9650 STS (SN <700301), 9650 STS (SN <700401)
    $103.59
  18. 8
    H203474 Combine Feederhouse Drive Belt fits John Deere
    Fits: 9570 STS, 9660 STS, 9670 STS, 9760 STS, 9770 STS, 9860 STS
    $122.29
  19. 8
    H174885 Combine High Torque Feederhouse Drive Belt fits John Deere
    Fits: 9860 STS, 9870 STS
    $224.79
  20. 8
    H229019 Combine 5 Speed Feederhouse Drive Belt fits John Deere
    Fits: 9670 STS, 9770 STS, 9870 STS
    $272.09
  21. 9
    H157732 Combine Variable Speed Feeder House Drive Belt fits John Deere
    Fits: 9650 STS (SN <695601)
    $201.09
  22. 9
    H205169 Combine Feeder House Drive Belt fits John Deere
    Fits: 9650 STS (SN 695601>)
    $200.39
  23. 9
    H201334 Combine Variable Speed Feeder House Drive Belt fits John Deere
    Fits: 9560 STS, 9570 STS, 9660 STS
    $197.19
  24. 9
    H218726 Combine Variable Speed Feeder House Drive Belt fits John Deere
    Fits: 9560 STS, 9570 STS, 9650 STS, 9660 STS, 9670 STS, 9760 STS, 9770 STS, 9860 STS
    $271.89
  25. 9
    HXE45928 Combine Feeder House Belt (High Torque) fits John Deere
    Fits: 9660 STS (HIGH TORQUE), 9670 STS, 9760 STS (HIGH TORQUE), 9770 STS, 9860 STS (EXTRA HEAVY DUTY)
    $323.69
  26. 10
    H126345 Combine Header & Reel Pump Drive Belt fits John Deere
    Fits: 9560 STS, 9570 STS (SN <740200), 9650 STS (SN <700301), 9650 STS (SN <700401)
    $103.59
  27. 10
    H209507 Combine Header & Reel Pump Drive Belt fits John Deere
    Fits: 9560 STS, 9570 STS (SN <740200)
    $226.99
  28. 10
    H209507 Combine Header & Reel Pump Drive Belt fits John Deere
    Fits: 9560 STS, 9570 STS (SN <740200)
    $226.99
  29. 10
    H229018 Combine Header & Reel Pump Drive Belt fits John Deere
    Fits: 9670 STS, 9770 STS, 9870 STS (MULTI SPEED)
    $283.79
  30. 10
    HXE16928 Combine Front End Drive Clutch to Feederhouse Drive Belt fits John Deere
    Fits: 9570 STS (SN 740201>)
    $148.39
  31. 10
    HXE16927 Combine Feederhouse Drive Belt fits John Deere
    Fits: 9570 STS (SN 740201>)
    $184.99
  32. 11
    AH150678 Combine Right Hand Jackshaft Drive Belt fits John Deere
    Fits: 9650 STS, 9660 STS, 9670 STS, 9760 STS, 9770 STS, 9860 STS, 9870 STS
    $93.69
  33. 11
    AH202773 Combine Right Hand Jackshaft Drive Belt fits John Deere
    Fits: 9560 STS, 9570 STS
    $98.59
  34. 11
    AXE13650 Combine Front Jackshaft Separator Drive Belt fits John Deere
    Fits:
    $114.09
  35. 12
    H154723 Combine Right Hand Jackshaft Drive Belt fits John Deere
    Fits: 9560 STS, 9570 STS, 9650 STS, 9660 STS, 9670 STS, 9760 STS, 9770 STS, 9860 STS, 9870 STS
    $65.09
  36. 13
    H157104 Combine Rotary Screen Drive Belt fits John Deere
    Fits: 9650 STS (SN <695601)
    $17.09
  37. 14
    H175632 Combine Rotary Screen Drive Belt fits John Deere
    Fits:
    $23.89
  38. 14
    H157105 Combine Rotary Screen Drive Belt fits John Deere
    Fits: 9650 STS
    $50.29
  39. 14
    H175628 Combine Rotary Screen Drive Belt H175628 fits John Deere
    Fits: 9760 STS (SN <715501), 9860 STS (SN <715601)
    $38.39
  40. 14
    H221273 Combine Air Screen Drive Belt Screen Side fits John Deere
    Fits: 9570 STS, 9670 STS, 9770 STS, 9870 STS
    $37.09
  41. 14
    H214241 Combine Rotary Screen Drive Belt fits John Deere
    Fits: 9660 STS (SN 715401>), 9760 STS (SN 715501>), 9860 STS (SN 715601>)
    $36.49
  42. 15
    H175587 Combine Shoe Fan & Conveyor Auger Drive Belt fits John Deere
    Fits: 9560 STS, 9570 STS, 9650 STS, 9660 STS, 9670 STS, 9760 STS, 9770 STS, 9860 STS, 9870 STS
    $142.59
  43. 16
    H201571 Combine Straw Chopper Drive Belt fits John Deere
    Fits: 9650 STS
    $110.59
  44. 16
    H235564 Combine Straw Chopper Jackshaft Drive Belt fits John Deere
    Fits: 9560 STS, 9570 STS, 9650 STS (SN 700501>), 9660 STS (SN 700501>), 9670 STS (SN 700501>), 9760 STS, 9770 STS, 9860 STS, 9870 STS
    $126.19
  45. 16
    H223212 Combine Straw Chopper Jackshaft Drive Belt fits John Deere
    Fits: 9770 STS, 9870 STS
    $154.39
  46. 16
    H232997 Combine Straw Chopper Jackshaft Drive Belt fits John Deere
    Fits: 9670 STS
    $113.89
  47. 16
    H220747 Combine Straw Chopper Drive Belt fits John Deere
    Fits: 9860 STS
    $190.89
  48. 17
    H221498 Combine Rotor Variable Speed Drive Belt fits John Deere
    Fits:
    $435.99
  49. 17
    HXE147321 Combine Rotor Variable Speed Drive Belt fits John Deere
    Fits: 9770 STS, 9860 STS (SN 705798>), 9870 STS
    $618.99
  50. 17
    H207851 Combine Rotor Variable Speed Drive Belt fits John Deere
    Fits: 9860 STS (SN <705798)
    $651.49
  51. 18
    AH160080 Combine Unloading Auger Drive Belt fits John Deere
    Fits: 9560 STS, 9570 STS, 9650 STS, 9660 STS, 9670 STS, 9760 STS, 9770 STS, 9860 STS, 9870 STS
    $78.39
