$1,060.29
Ships direct from the supplier

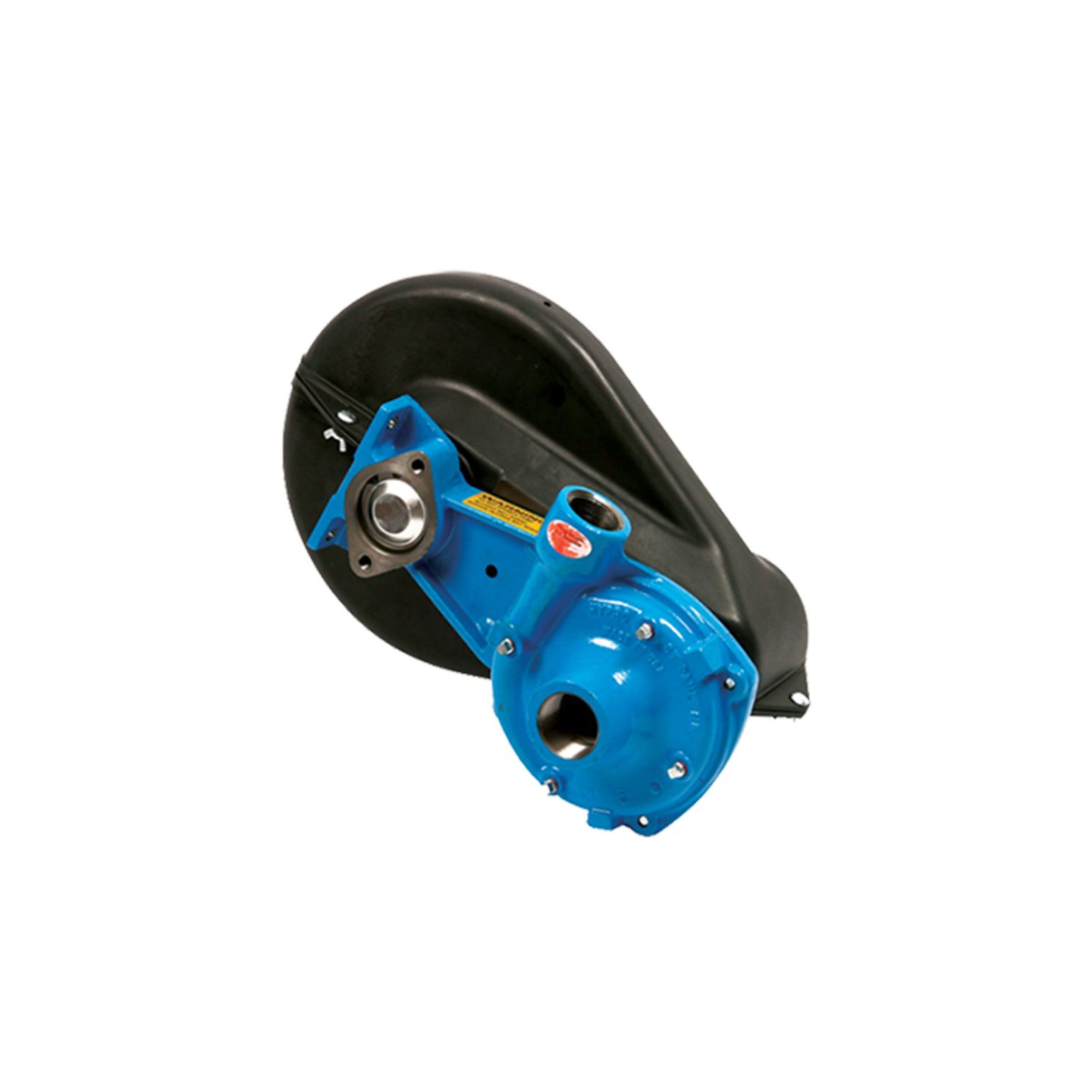

Hypro 9402C-1000 Cast Iron Sprayer Pump

Part #
350102
Be the first to review this product

Details

Pump Diagram

Performance Information Max. flow: 76-140 gpm/288-530 lpm (free flow) Max. pressure: 95-104 psi/6.6-7.2 bar (Shut off) Max. speed: 600 and 1000 rpm PTO Max. fluid temperature: 140F/60C Other Attributes Drive: 12-groove belt Spring-loaded belt tensioner Stainless steel wear ring Port sizes: 9402 models -- 1 1⁄4'' NPT inlet, 1'' NPT outlet; 9403 models -- 1 1⁄2'' NPT inlet, 1 1⁄4'' NPT outlet Stainless steel pump shaft, standard Five shafts for 540 and 1000 PTO: 1'' solid, 1 3⁄8'' hollow (6-spline), 1 3⁄8'' quick coupler(6-spline), 1 3⁄8'' hollow (21-spline), 1 3⁄4'' hollow (20-spline) Pump shaft rotation: CCW Impeller: Cast Iron models -- glass-filled nylon; Poly and Stainless Steel models -- polypropylene Pump seals: Viton/ceramic standard (Buna-N/ceramic and Viton/silicon carbide available) Weight: 40-45 lbs./18.2-20.5 kg
