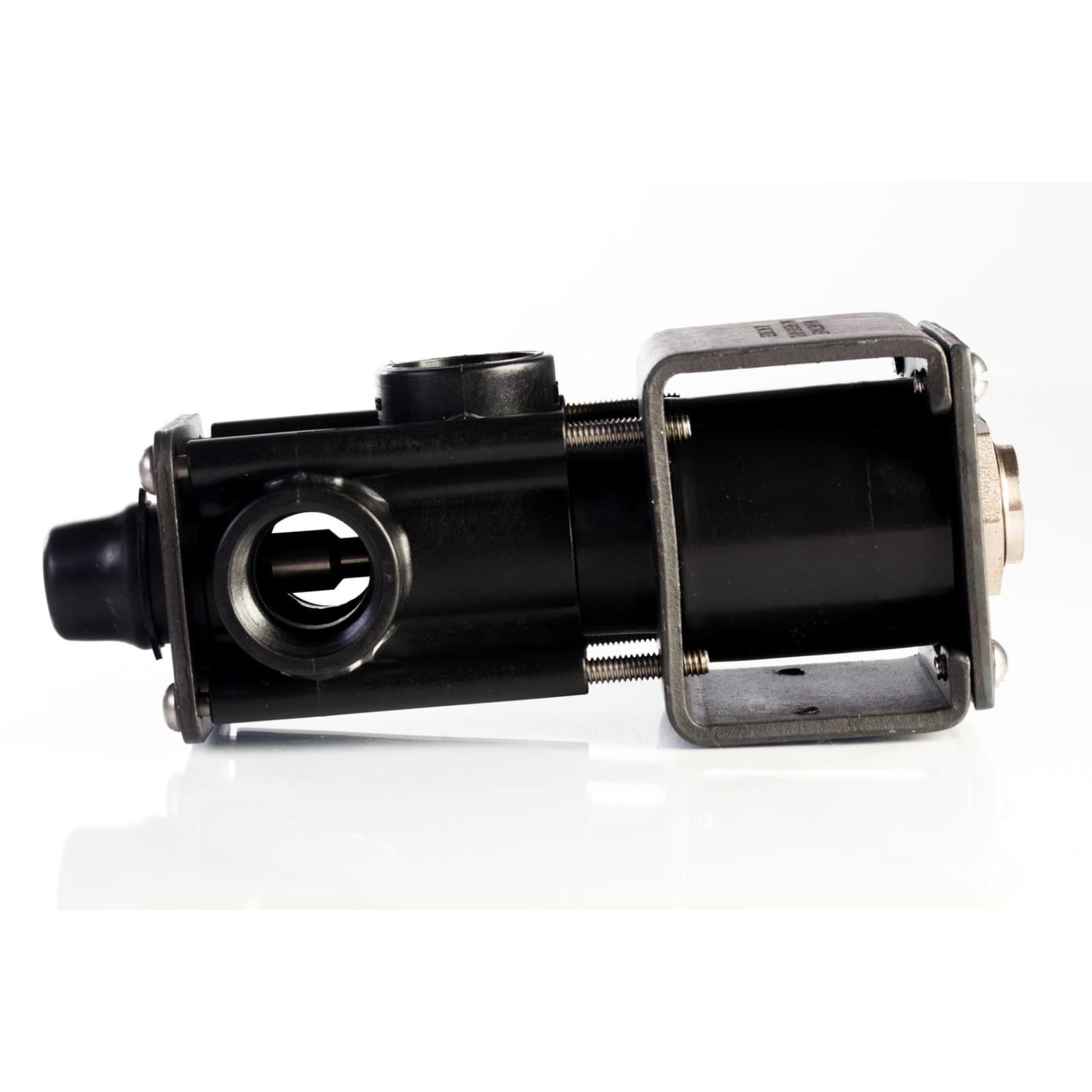

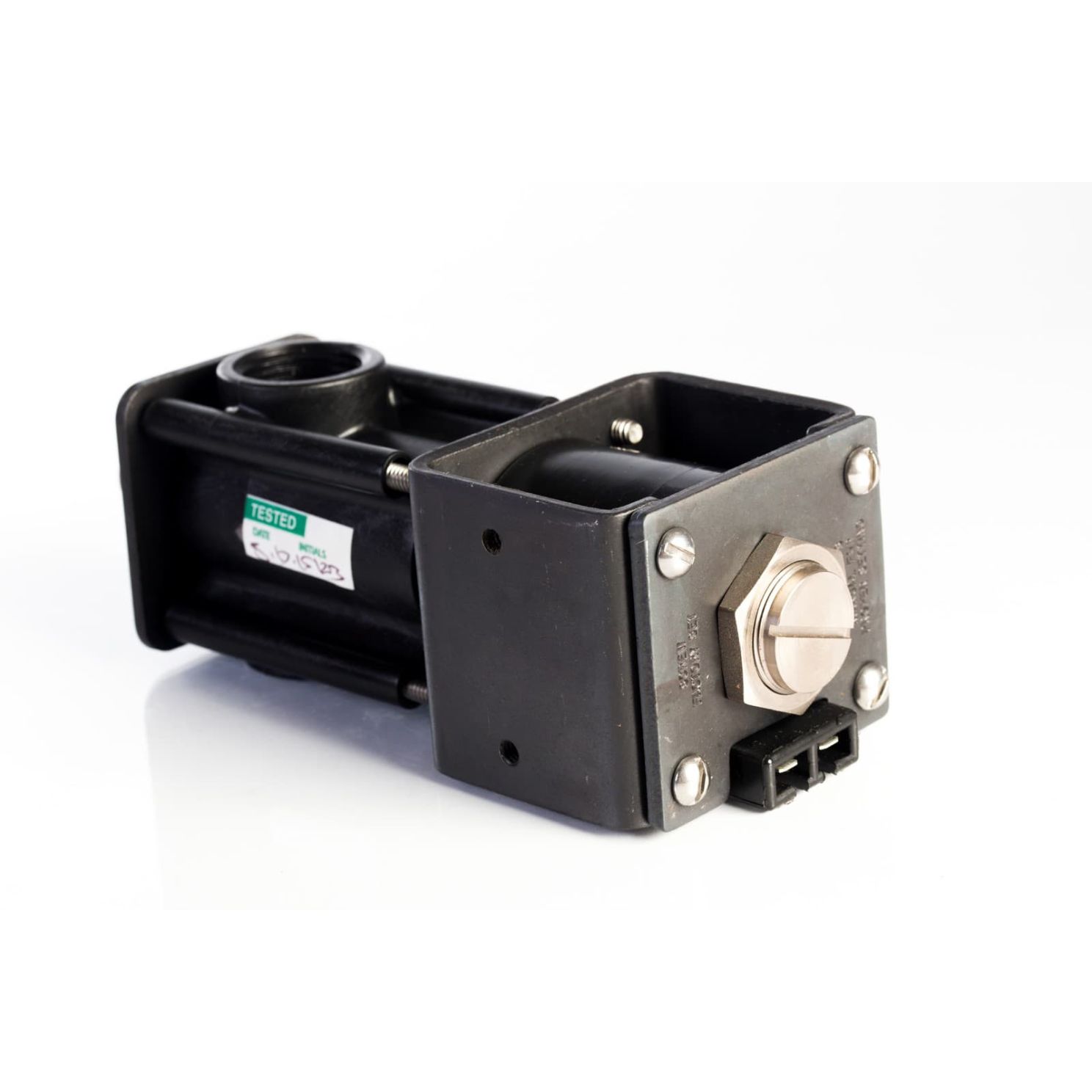

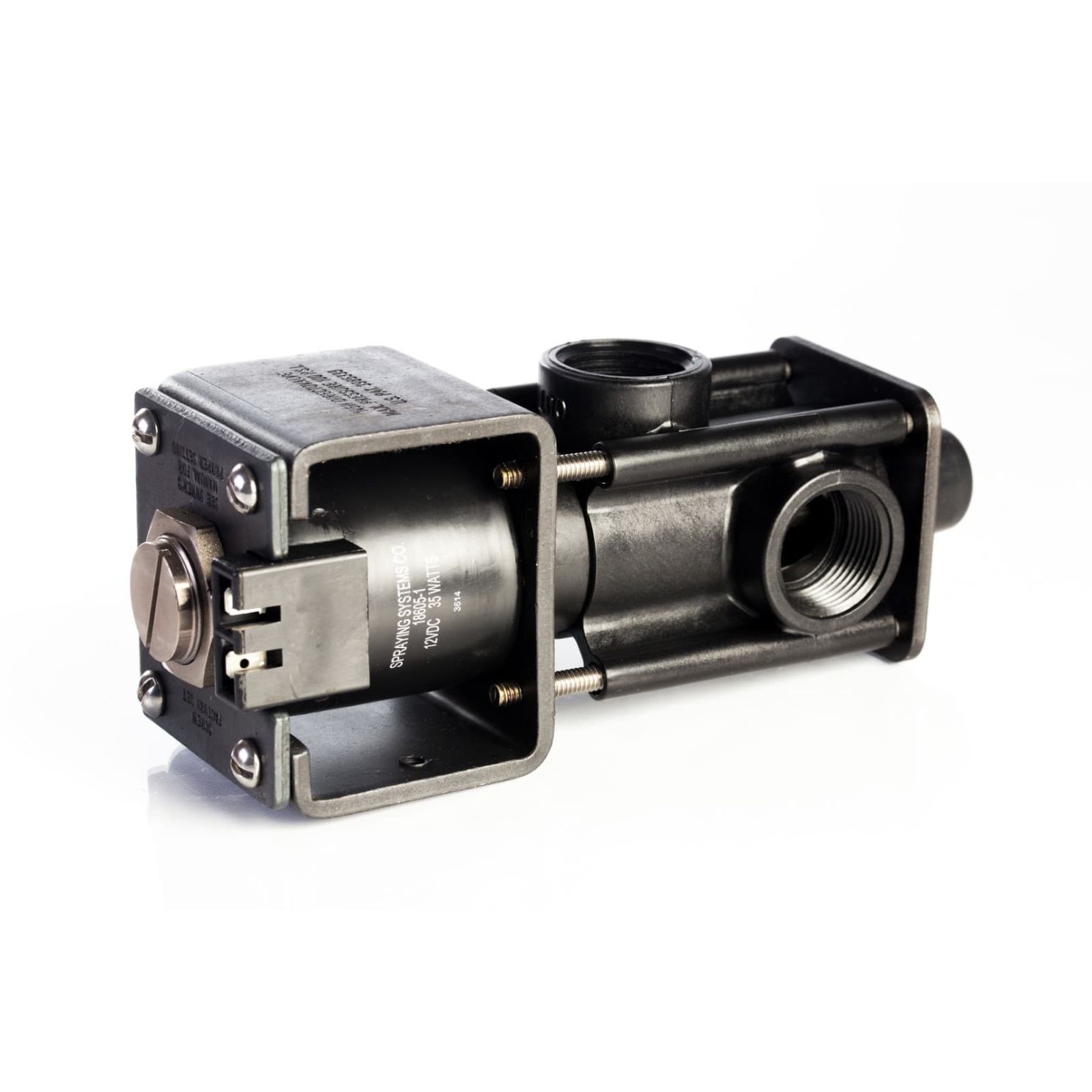

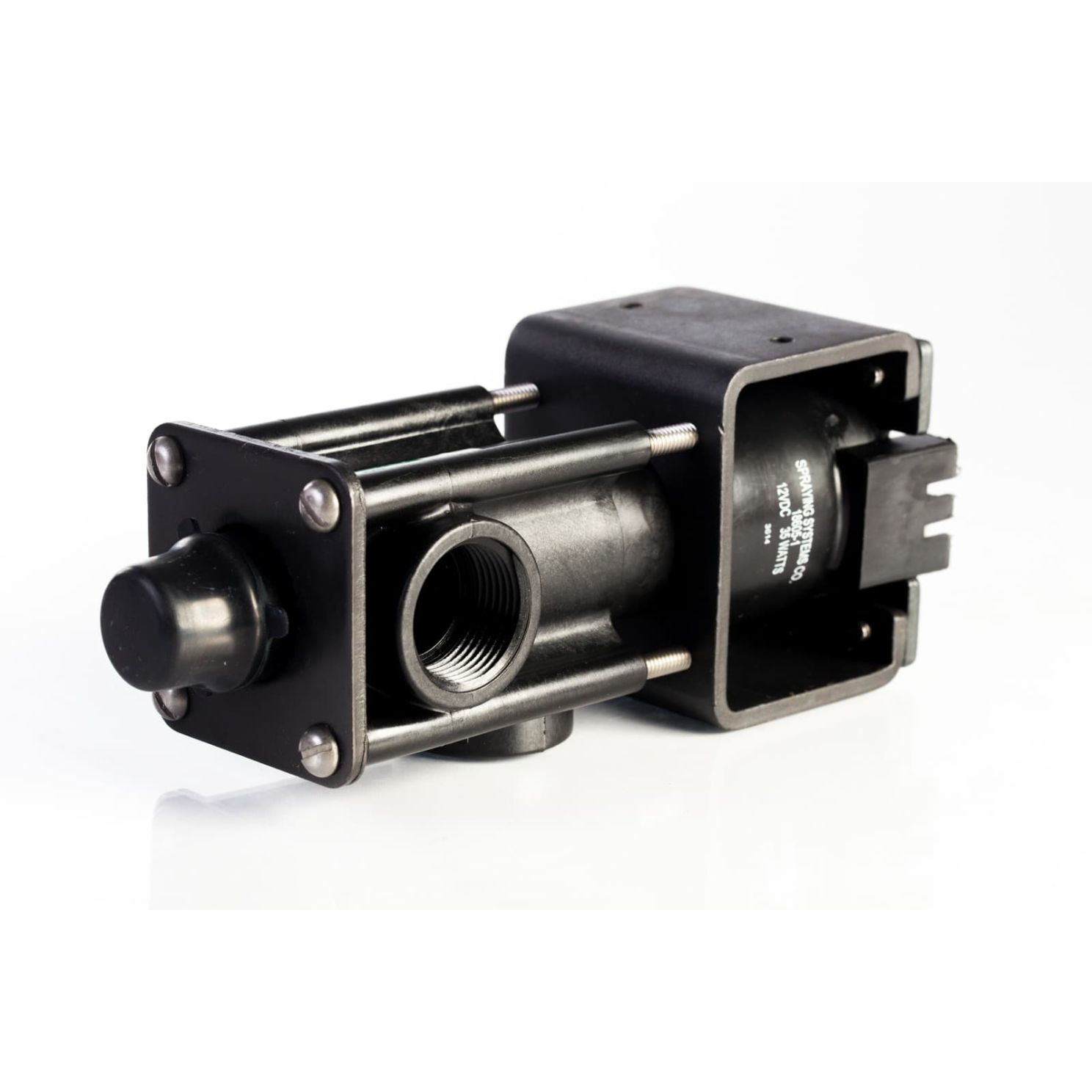

TeeJet AA145-1 DirectoValve Sprayer Boom Control Valves
Details
- Direct acting; large internal flow chamber without pilot hole reduces chance of clogging.
- Stainless steel wetted parts provide additional corrosion resistance.
- Operates on 12 VDC system.
- Maximum pressure of 100 psi (7 bar).
- Encapsulated solenoid coil can be changed without removing valve from system.
- EPDM diaphragms and seat washers, Viton® optional.
- Continuous flow through bypass connection, with flow to spray line controlled by valve "on-off" action.
- 15 gpm (56.7 l/min) with 5 psi (0.34 bar) pressure drop.
- Can be ganged with other 145H DirectoValve control valves.
- 2.9 amp current draw.
- Fiberglass reinforced nylon body.
