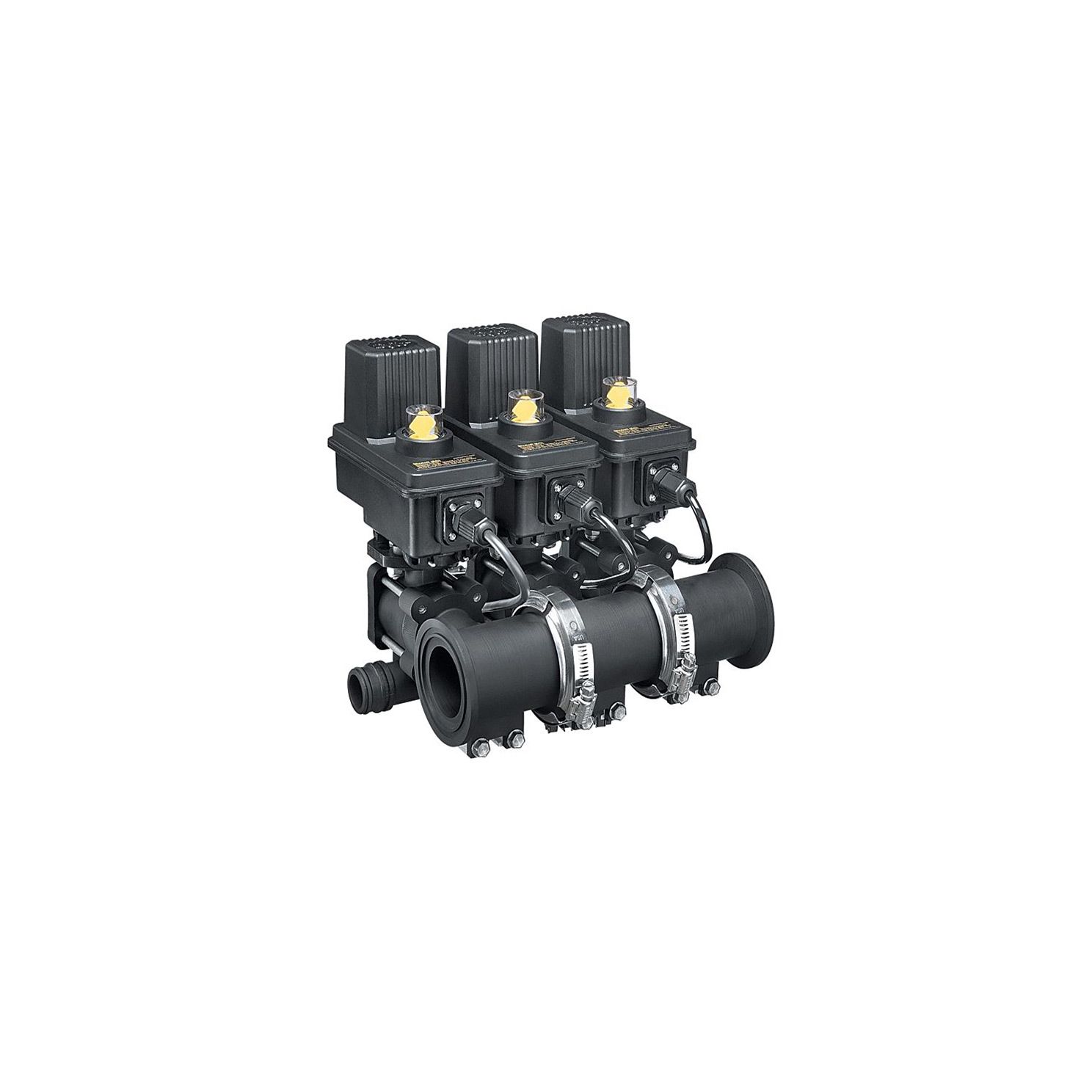

Teejet 450 Series 3 Valve Shutoff Manifold
Part #
333212
$754.69
Details
Maximum pressure 150 psi (10 bar). \nFlow rate of 31 GPM at 5 psi pressure drop (117 l/min at 0.34 bar pressure drop). Flow rates will vary based on number of valves and inlet size. \nEasy mounting with built-in mounting slots. \nBased on proven design of AA344 ball valves. \n12 VDC operation. \nFlanged connections eliminate leaks caused by threaded fittings. \n3/4 second response time from fully open to fully closed. \nPressure regulating valves can be incorporated upon request. \nNylon stem and polypropylene ball available as standard (stainless steel ball and stem optional). \nNo external fuses -- incorporates an internal resettable fuse. \n
