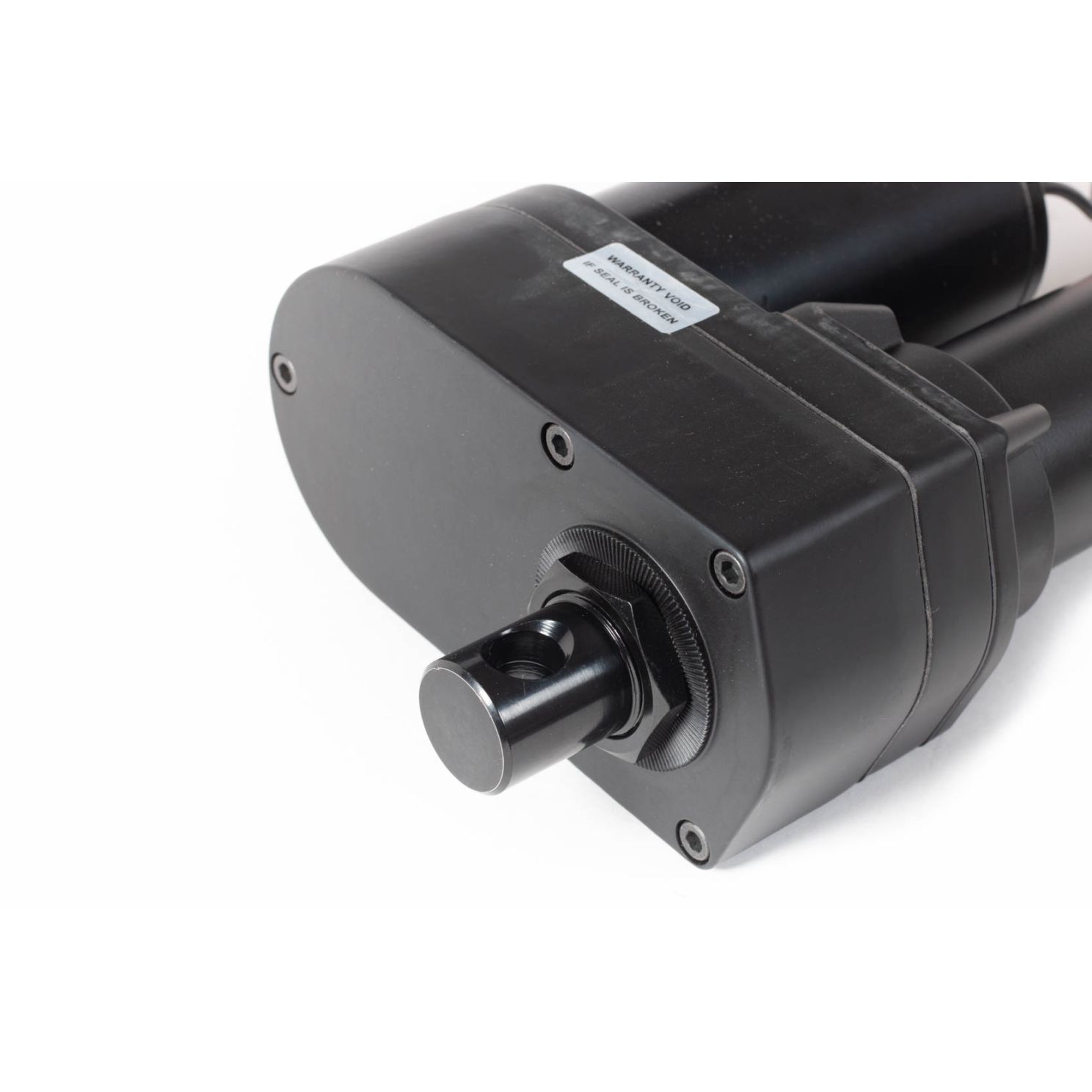

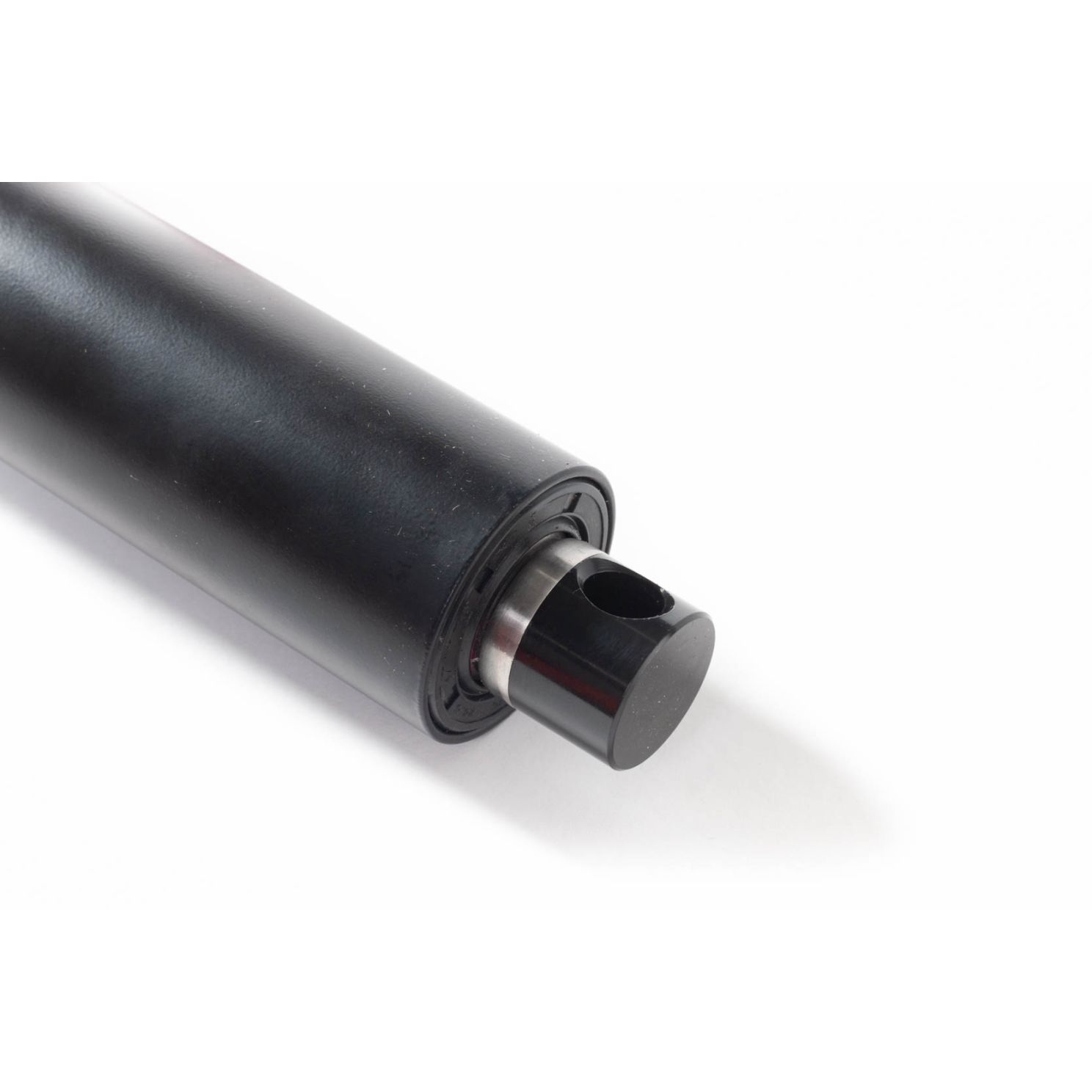

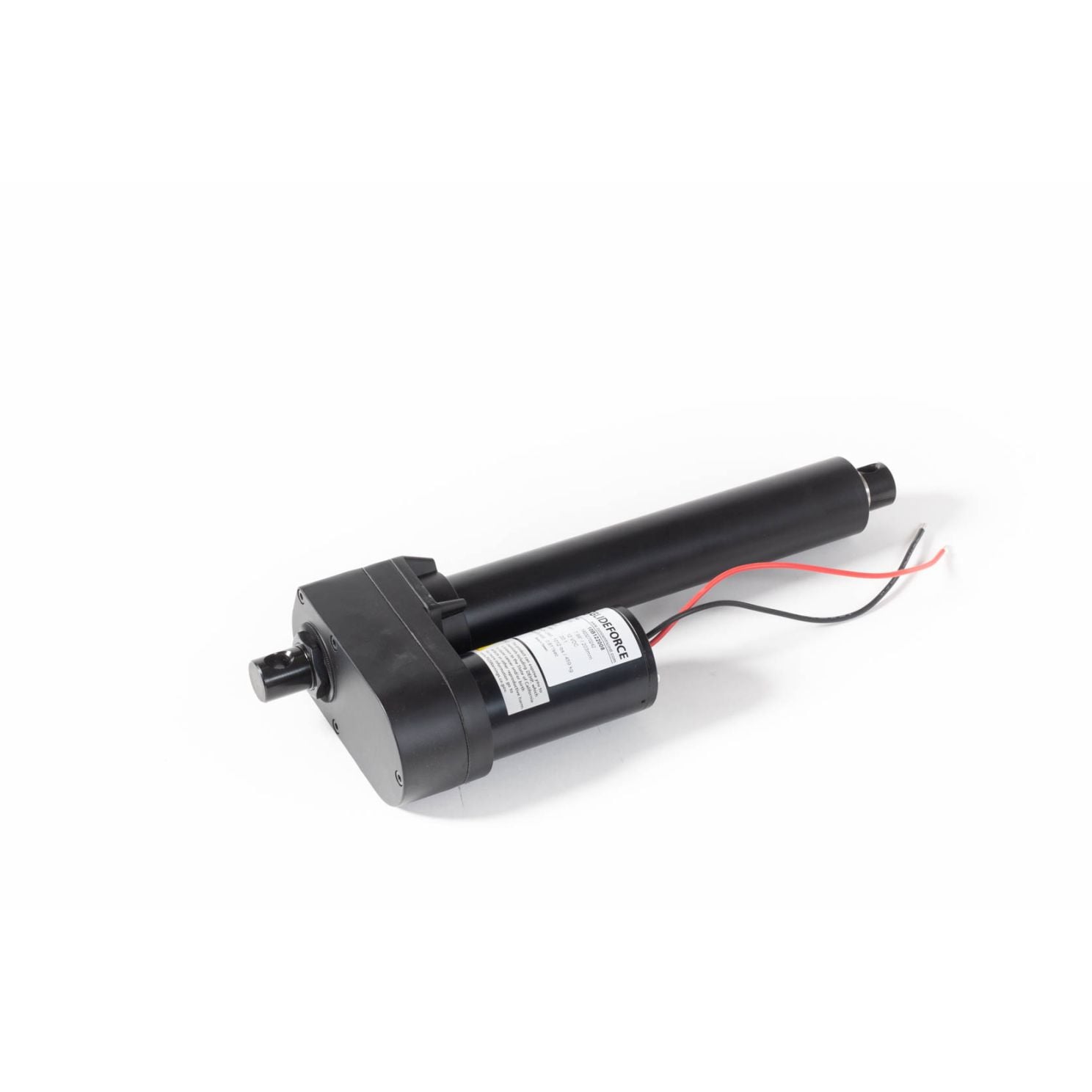

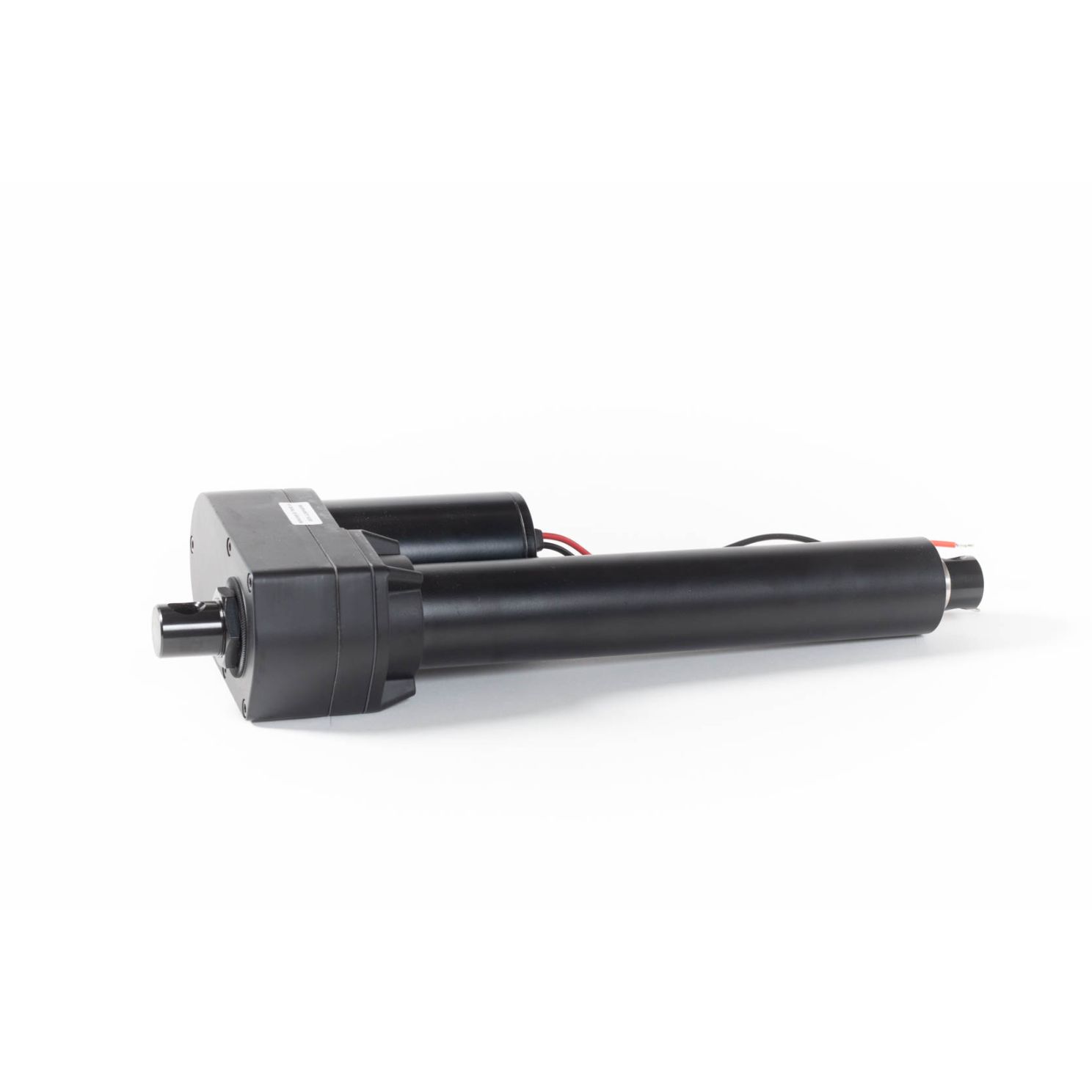

8" Stroke ID-Ballscrew Linear Actuator 1000 lb. Capacity
Details
ID Series Ball Screw linear actuators are ideally suited for many industrial, agricultural, automotive and off-highway applications. Offered in six stroke lengths from 4" to 24" (nominal), they have a 1000 Lb dynamic load rating (with Std 20:1 gear ratio), and a 3000 Lb static load rating. All aluminum construction with metal drive gears ensure tremendous durability and reliability. All ID Ball Screw series linear actuators come standard with thermal overload protection, and a torque limiter for overload protection. Speed at Max Load: 0.55"/sec
- Stroke Length: 8.00"
- Retracted Length: 15.91"
- Extended Length: 23.91"
- 12V Motor
- 1/2" Mounting Pin Holes
- Speed at Max Load: 0.55"/sec
- Ballscrew drive is durable and long lasting for smooth operation
- 20:1 Gear Ratio
